Product Model

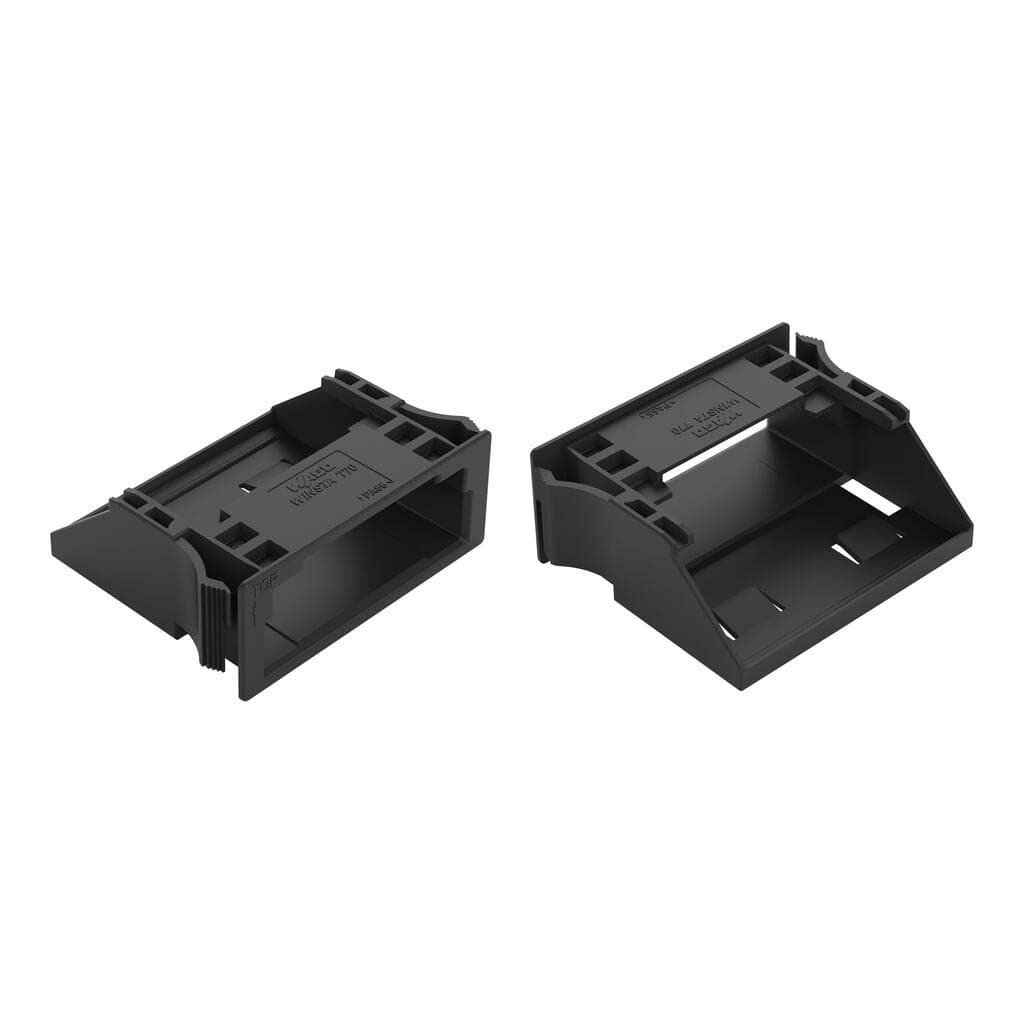

770-339
Selling Points
- 1Secure and Reliable Connections: The WAGO 770-339 snap-in frame provides robust and dependable connections in electrical installations.
- 2Versatile Wiring Applications: Suitable for a range of wiring applications, including 2-pole connections with conductor sizes from 1.0 to 3.0 mm.
- 3Easy Installation: Simple snap-in design makes installation quick and hassle-free.
- 4High-Quality Material: Constructed from durable materials to ensure long-lasting performance.
- 5Compliance with Standards: Meets ROHS compliance standards, ensuring safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Width | 45.5?mm?/ 1.791?inches |
Height | 18.5?mm?/ 0.728?inches | Depth | 37.2?mm?/ 1.465?inches |
Housing sheet thickness | 1 … 3?mm?/ 0.039 … 0.118?inches | Mounting type | Snap-in flange |
Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.128MJ |
Weight | 4.3g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Foil | Country of origin | DE |
GTIN | 4055143404952 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 4 |
Specifications may be subject to change without notice
