Product Model
770-401
Selling Points

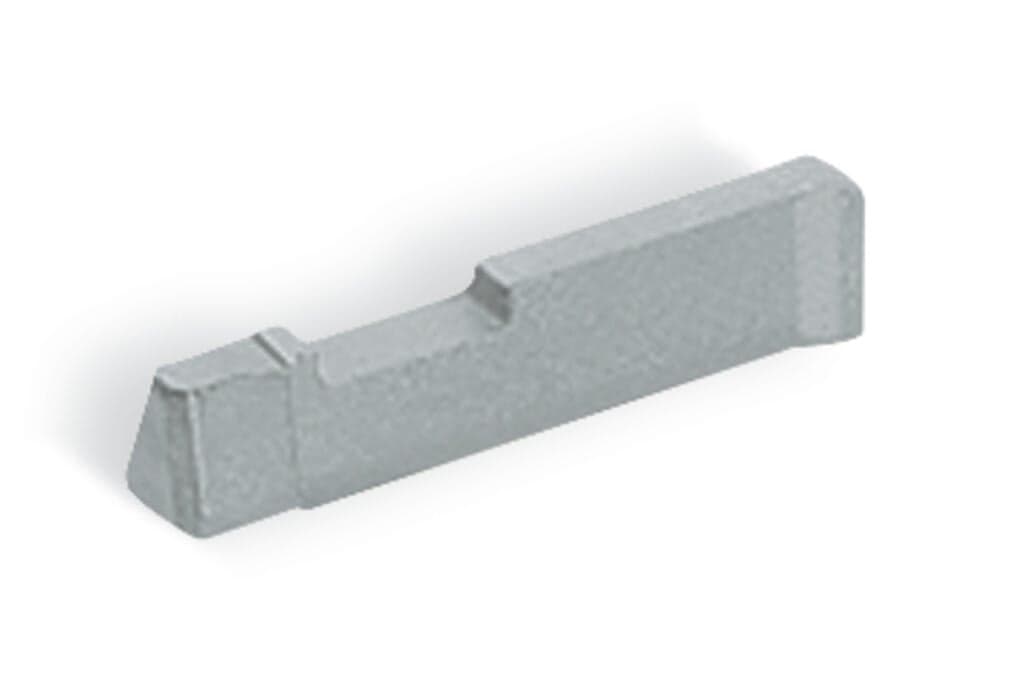

- 1The WAGO 770-401 coding pin ensures fast, secure installation in complex electrical systems.
- 2Designed with advanced technology for secure and maintenance-free connections.
- 3Compatible with a wide range of wiring types, making it suitable for both industrial and commercial electrical installations.
- 4Features a user-friendly design that simplifies the installation process.
- 5Made from high-quality plastic material, ensuring durability and longevity in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for plug; A- and B-coding | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.002MJ |
Weight | 0.1g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332801935 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
