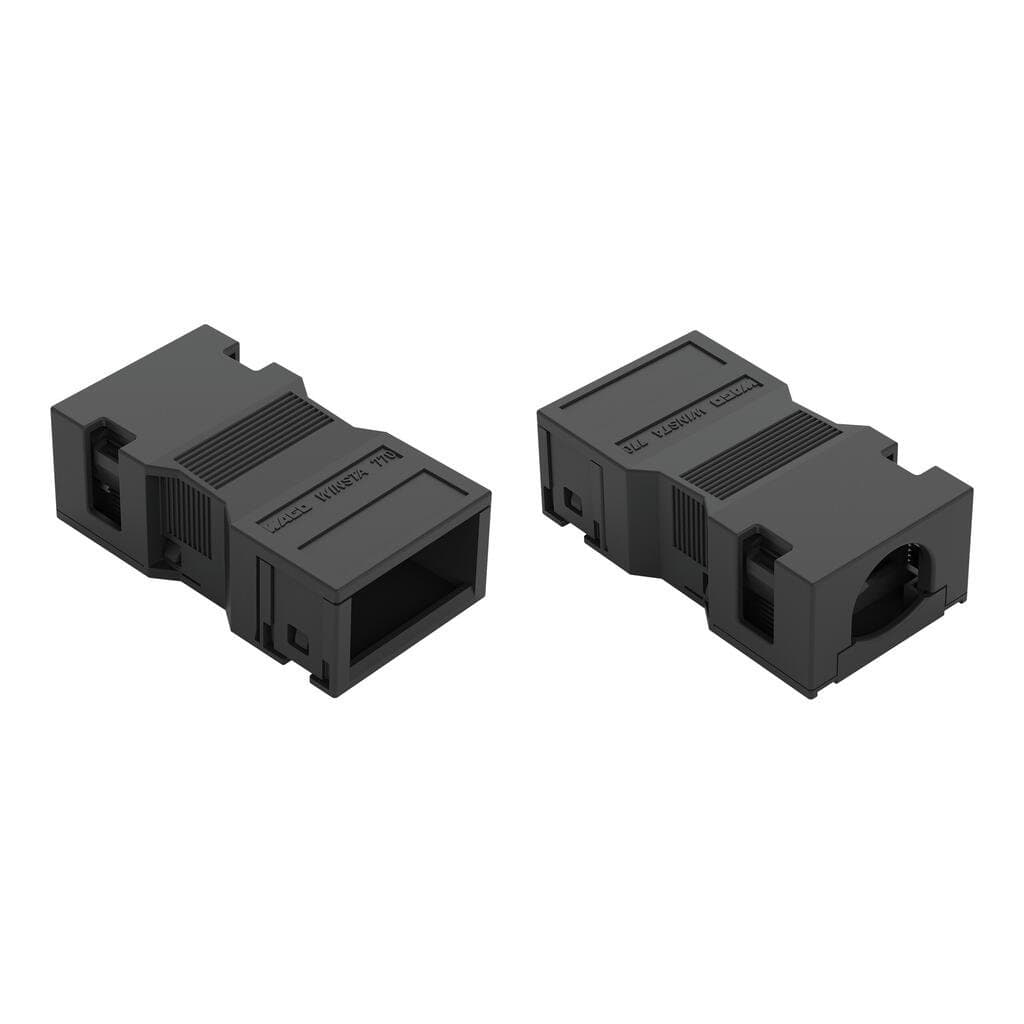

Product Model
770-502/042-000
Selling Points
- 1Error-Free Installation: Designed for easy and secure cable connections with a locking clip.
- 2Durable Insulation: Made from high-quality polyamide (PA66) for long-lasting performance.
- 3Temperature Resistance: Operates between -35°C to +85°C, ensuring reliability in various environments.
- 4Compact Design: Measures 45 mm in depth, 24.6 mm in width, and 15.9 mm in height.
- 5Certified Safety: Compliant with Lloyds Register (LR) and UL94 V0 flammability standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 24.6?mm?/ 0.969?inches |
Height | 15.9?mm?/ 0.626?inches | Depth | 45?mm?/ 1.772?inches |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.267MJ | Weight | 6.6g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821137566 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 2 | Connectable sheathed cable diameter | 5 … 9?mm |
Strip length (outer insulation) | 35mm |
Specifications may be subject to change without notice
