Product Model

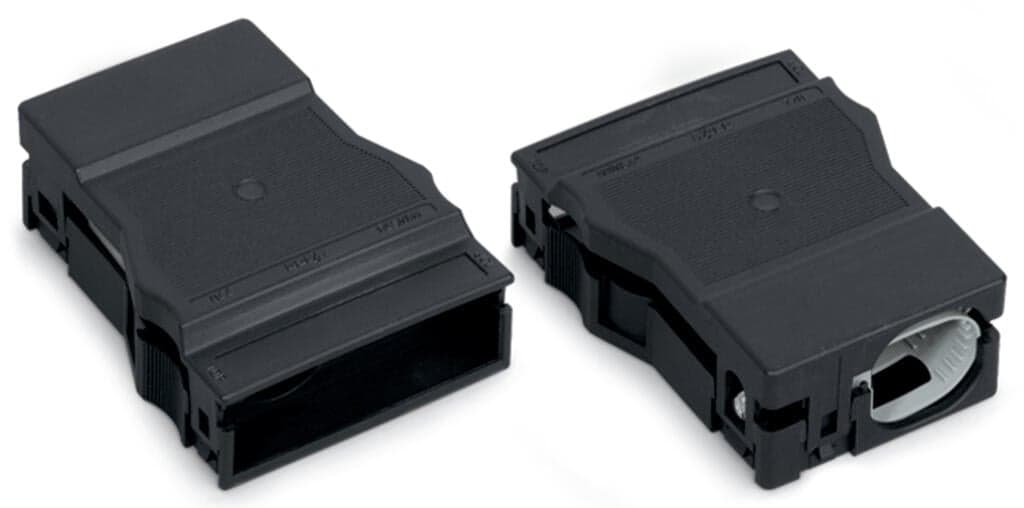

770-504/020-000
Selling Points
- 1High-reliability design ensures consistent performance.
- 2Easy-to-install connectors save time and effort.
- 3Durable construction withstands harsh industrial conditions.
- 4Compact size fits in tight spaces, reducing clutter.
- 5Compatible with various industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10?mm?/ 0.394?inches | Width | 54.8?mm?/ 2.157?inches |
Height | 21?mm?/ 0.827?inches | Depth | 72.7?mm?/ 2.862?inches |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.554MJ |
Weight | 19.9g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966329780 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 4 |
Connectable sheathed cable diameter | 11.5 … 16.5?mm | Strip length (outer insulation) | 71mm |
Specifications may be subject to change without notice
