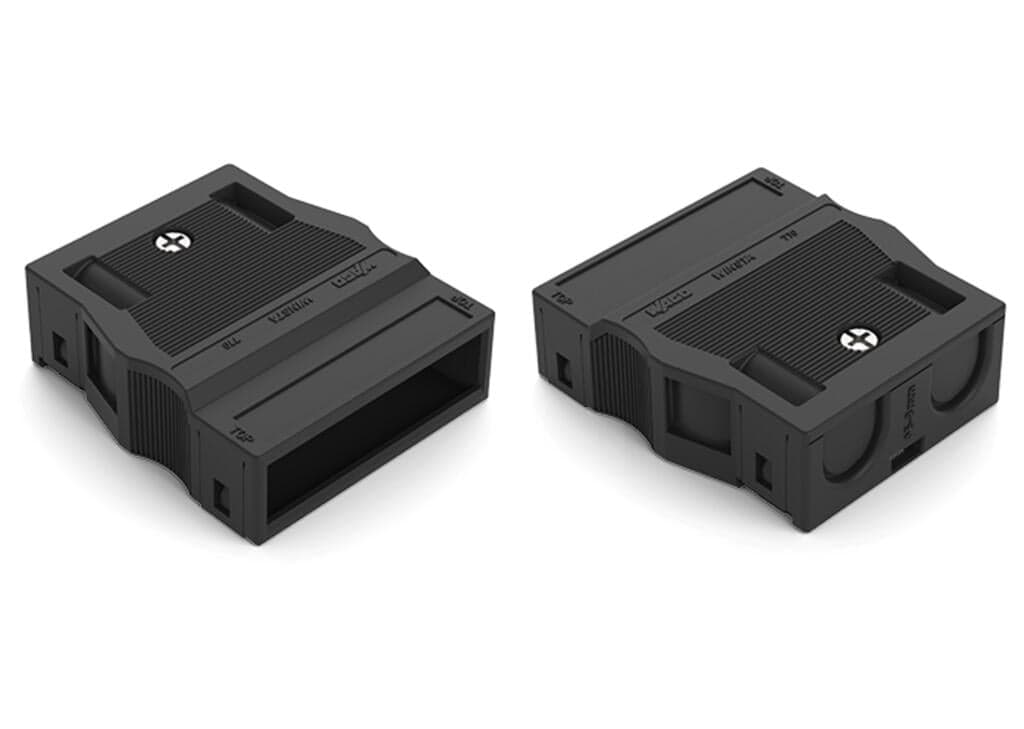

Product Model
770-504/023-000
Selling Points
- 1Secure Cable Management: Provides strain relief for 2 cables with diameters of 5-9 mm, ensuring secure connections.
- 2High Performance: Designed to meet high standards of performance and safety in complex electrical networks.
- 3Versatile Compatibility: Compatible with various industrial and automation systems, offering interchangeability with other components.
- 4Durable Construction: Made from black polyamide 66 (PA 66) material, ensuring durability and resistance to environmental factors.
- 5Compliance and Certifications: Meets international standards and is certified by Lloyds Register (LR) and Underwriters Laboratories (UL).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 44.6?mm?/ 1.756?inches |
Height | 17?mm?/ 0.669?inches | Depth | 50?mm?/ 1.969?inches |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.359MJ |
Weight | 12.9g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454341756 | Customs tariff number | 8538908160 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 4 |
Connectable sheathed cable diameter | 5 … 9?mm | Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
