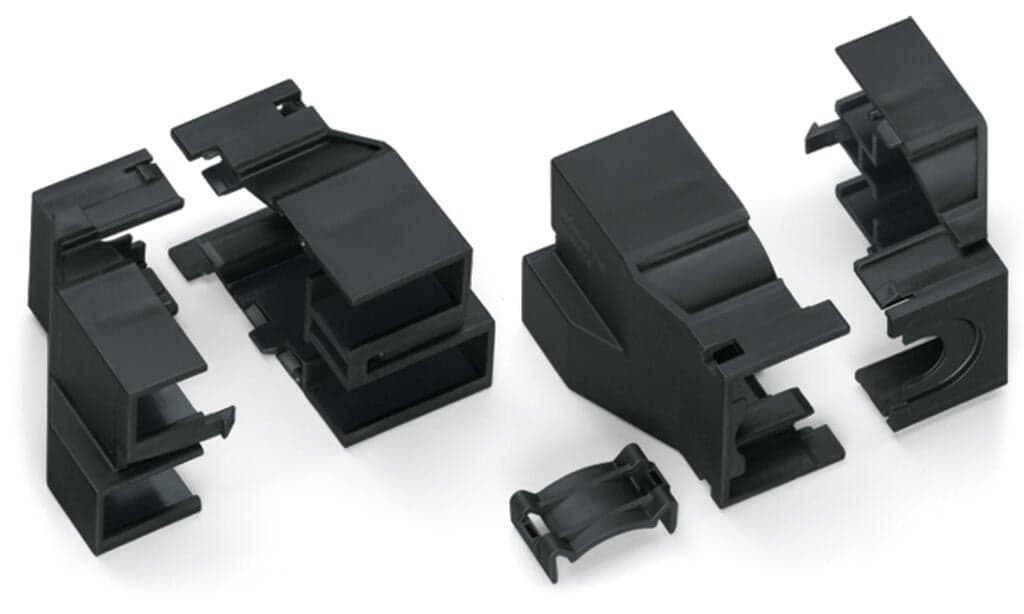

Product Model
770-507/047-000
Selling Points
- 1Secure cable management with a locking lever.
- 2Compatible with cables from 8.0 to 15.0 mm.
- 3Designed for high-voltage applications up to 1 kV.
- 4Easy installation and reliable performance.
- 5Durable, black housing for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 43.1?mm?/ 1.697?inches |
Height | 32.9?mm?/ 1.295?inches | Depth | 45?mm?/ 1.772?inches |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.517MJ | Weight | 12.9g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454554453 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 7 | Connectable sheathed cable diameter | 8 … 15?mm |
Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
