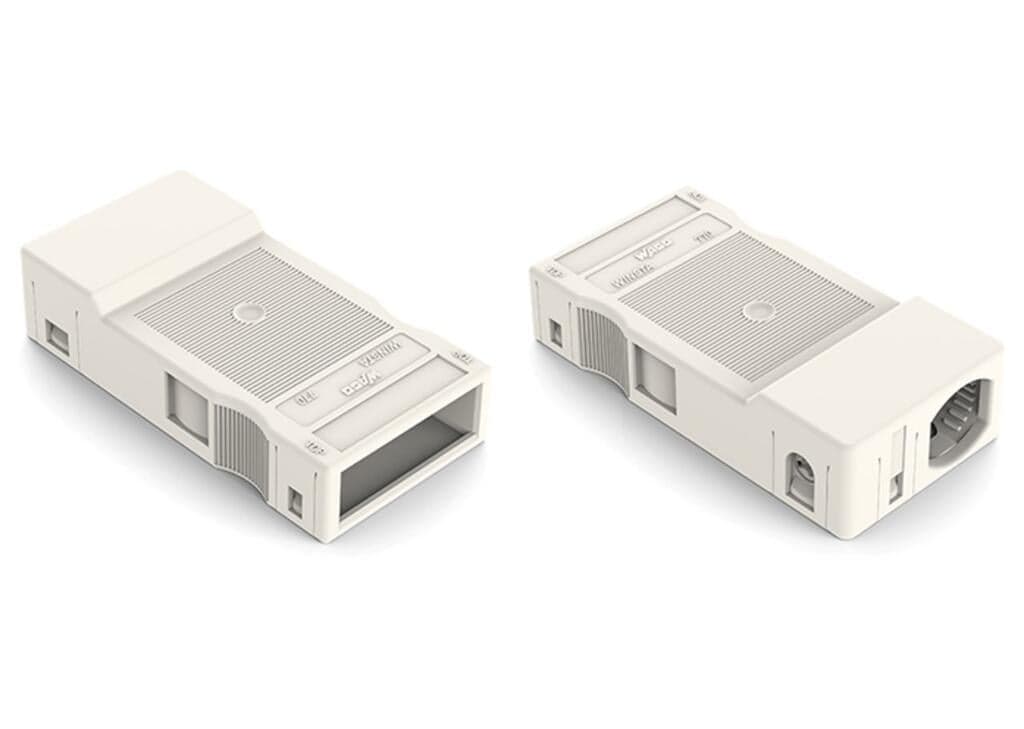

Product Model
770-513/021-000
Selling Points
- 1Ensures secure and efficient connections in industrial and automation systems.
- 2Compatible with cables 9-13 mm in diameter, accommodating various cable sizes.
- 3Operates continuously from -35°C to +85°C, suitable for diverse environmental conditions.
- 4Constructed from high-quality polyamide 66 (PA 66) for long-lasting performance.
- 5Meets ROHS compliance and UL-Approvals, ensuring safety and reliability in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 34.6?mm?/ 1.362?inches |
Height | 15?mm?/ 0.591?inches | Depth | 50?mm?/ 1.969?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.421MJ | Weight | 15.5g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454026226 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 | Connectable sheathed cable diameter | 9 … 13?mm |
Strip length (outer insulation) | 71mm |
Specifications may be subject to change without notice
