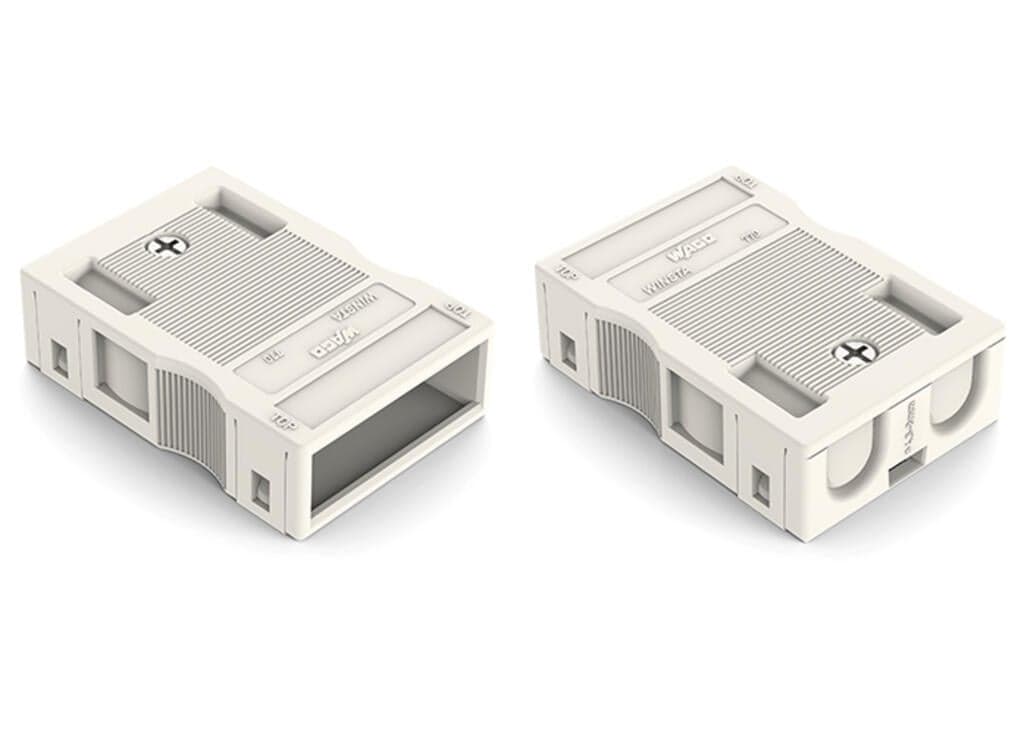

Product Model
770-513/023-000
Selling Points
- 1Made from high-quality materials for long-lasting performance.
- 2Simple push-in termination for quick and secure connections.
- 3Compatible with WAGO WINSTA MIDI series and suitable for various industrial applications.
- 4Sleek dimensions (55 mm width, 4.5 to 8 mm cable diameter) for efficient cable management.
- 5Meets EN 60998 standards for safe connections in household and building installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 34.6?mm?/ 1.362?inches |
Height | 15.2?mm?/ 0.598?inches | Depth | 50?mm?/ 1.969?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.272MJ |
Weight | 10.3g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918057523 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 | Connectable sheathed cable diameter | 4.5 … 8?mm |
Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
