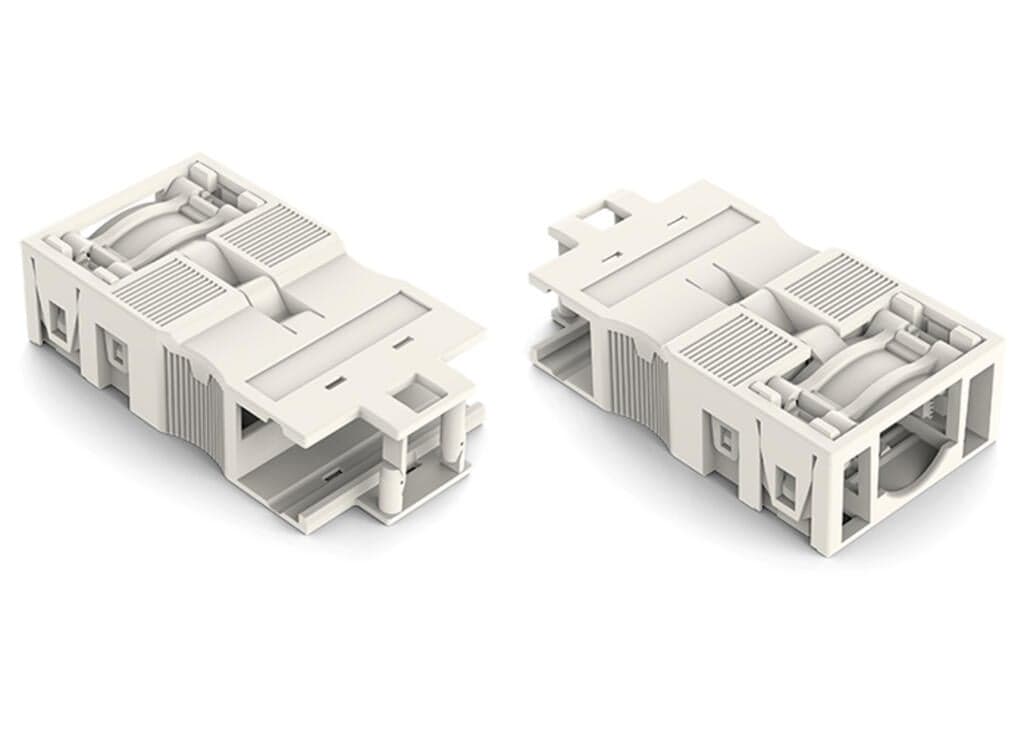

Product Model
770-513/035-000
Selling Points
- 1Built to withstand various environmental conditions.
- 2Simple push-in connection technology for quick setup.
- 3Prevents incorrect connections with locking clip.
- 4Compatible with cables of 7.0 to 11.5 mm diameter.
- 5Meets high standards of electrical safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 30?mm?/ 1.181?inches |
Height | 15.6?mm?/ 0.614?inches | Depth | 56.7?mm?/ 2.232?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.246MJ |
Weight | 8.2g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821524564 | Customs tariff number | 8538908160 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 3 |
Connectable sheathed cable diameter | 7 … 11.5?mm | Strip length (outer insulation) | 48mm |
Specifications may be subject to change without notice
