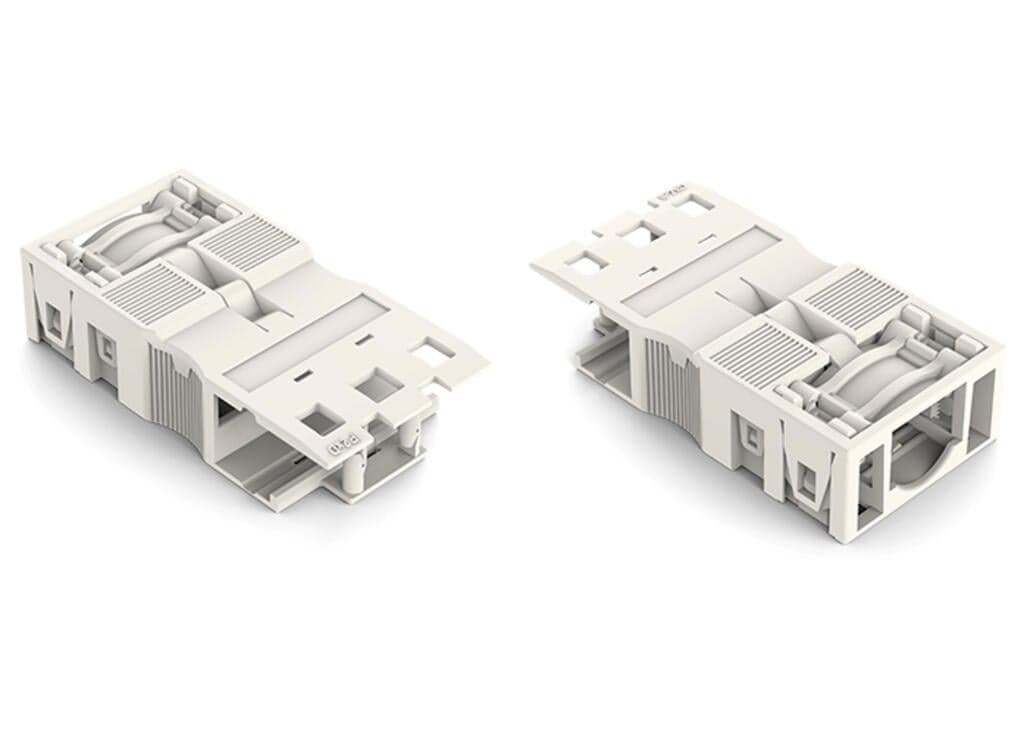

Product Model
770-513/038-000
Selling Points
- 1Industry-leading reliability with robust design.
- 2Easy installation and maintenance with snap-in connectors.
- 3High current capacity for demanding applications.
- 4Durable and resistant to environmental stressors.
- 5Compatible with a wide range of industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 30?mm?/ 1.181?inches |
Height | 15.6?mm?/ 0.614?inches | Depth | 59.6?mm?/ 2.346?inches |
Protection type | IP2XD | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.251MJ | Weight | 8.3g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821476009 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 | Connectable sheathed cable diameter | 7 … 11.5?mm |
Strip length (outer insulation) | 48mm |
Specifications may be subject to change without notice
