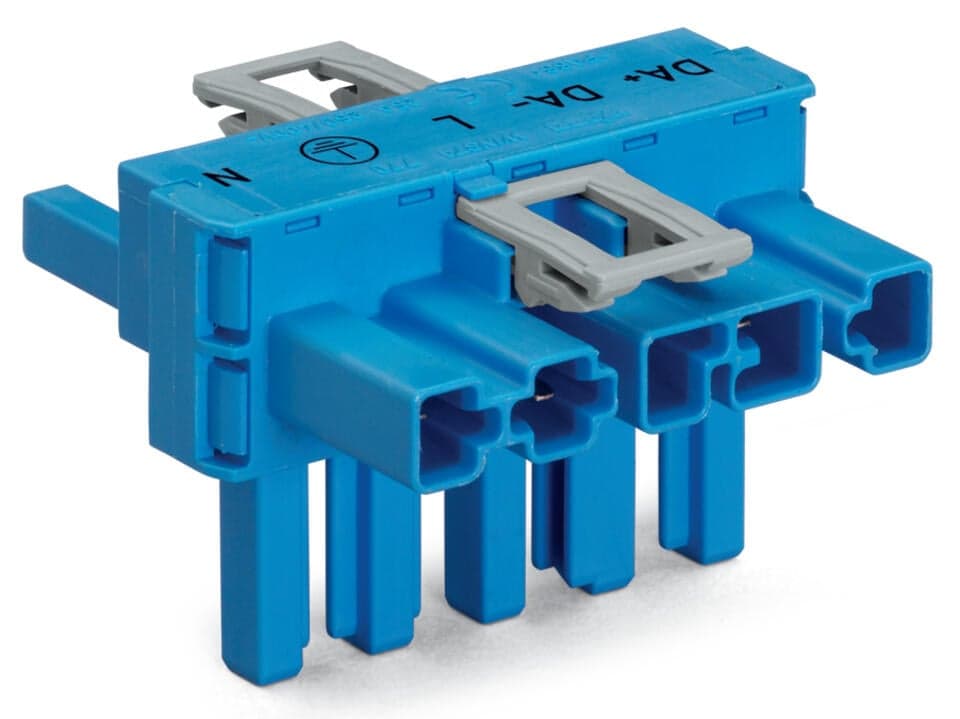

Product Model
770-617
Selling Points
- 1High Current Capacity: Handles electrical currents up to 25A for high power loads.
- 2Versatile Applications: Suitable for control cabinets, lighting connections, and PCBs.
- 3Enhanced Safety: Rated for overvoltage category III and pollution degree 3, ensuring reliable operation.
- 4Durable Construction: Made with copper or copper alloy contacts and polyamide insulation for long-lasting performance.
- 5Easy Installation: Features locking levers for secure mating and unmating, ensuring hassle-free connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 54?mm?/ 2.126?inches |
Height | 35.9?mm?/ 1.413?inches | Depth | 48.9?mm?/ 1.925?inches |
Use | DALI, Lighting Management | Coding | I |
Variable coding | No | Marking | DA+ DA- L ? N |
Potential Marking | DA+ DA- L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | When locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Type of distribution box | T-distribution connector |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | blue | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.492MJ |
Weight | 24.3g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-03 | eCl@ss 9.0 | 27-44-06-03 |
ETIM 9.0 | EC002567 | ETIM 8.0 | EC002567 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918934961 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 23A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 5 |
