Product Model

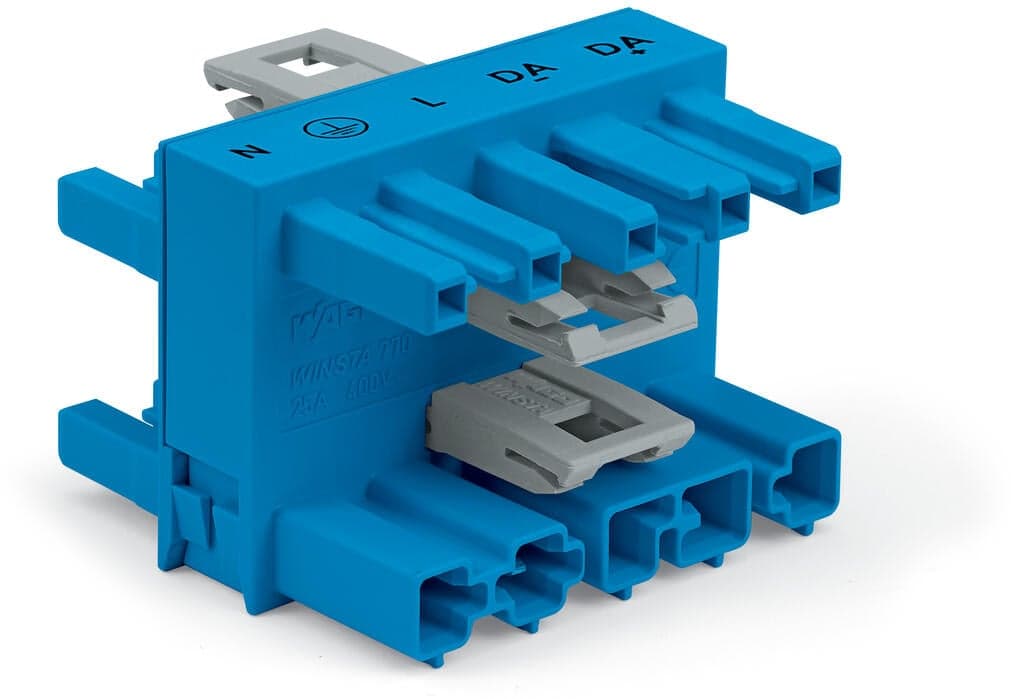

770-618
Selling Points
- 1Secure and Reliable Connections: The WAGO 770-618 ensures reliable connections with its pluggable design and mechanical protection against mismating.
- 2High Current Rating: Supports electrical currents up to 25 A, making it suitable for high power loads in control cabinets and lighting systems.
- 3IP20 Protection: Protected against finger contact with the contacts, ensuring user safety and reducing the risk of electrical shock.
- 4Easy Installation: Quick and easy to install, with a push-in cage clamp spring pressure connection technology that saves time and labor.
- 5Versatile Applications: Suitable for various applications including PCBs, control cabinets, and regulated lighting equipment following the DALI standard.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 50?mm?/ 1.969?inches |
Height | 36.7?mm?/ 1.445?inches | Depth | 46?mm?/ 1.811?inches |
Use | DALI, Lighting Management | Coding | I |
Variable coding | No | Marking | N ? L DA- DA+ |
Potential Marking | N ? L DA- DA+ | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | When locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Type of distribution box | Distribution connector, 3-way |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Number of locking levers | 4 |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.679MJ |
Weight | 42.5g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-03 |
eCl@ss 9.0 | 27-44-06-03 | ETIM 9.0 | EC002567 |
ETIM 8.0 | EC002567 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821394778 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 5 |
