Product Model

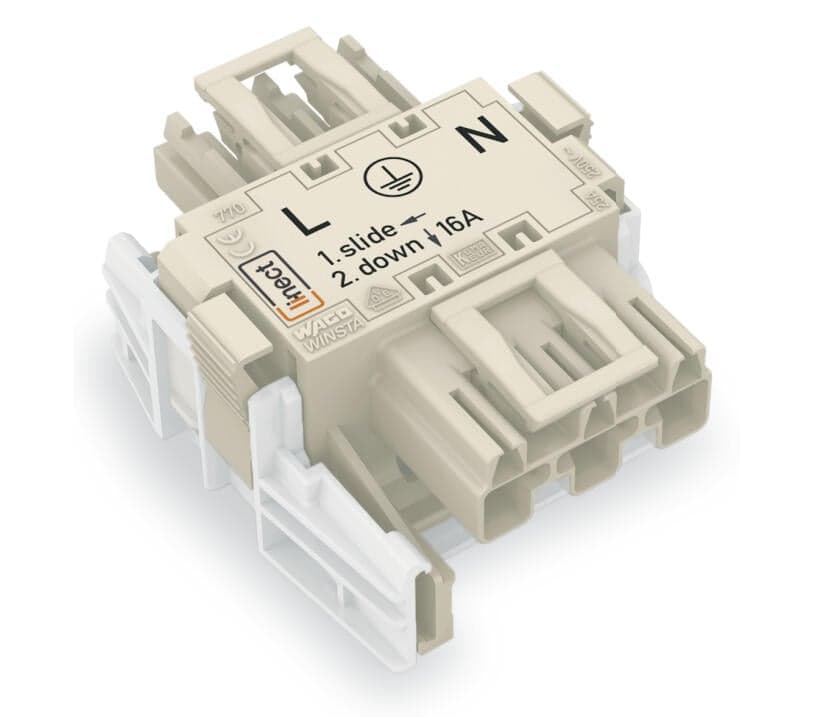

770-6223
Selling Points
- 1High-quality, durable design for long-lasting performance.
- 2Easy-to-use connectors for quick and secure connections.
- 3Robust electrical and mechanical performance in harsh environments.
- 4Compact size for space-saving installations in industrial settings.
- 5Compatible with a wide range of industrial applications and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 50.5?mm?/ 1.988?inches |
Height | 39.4?mm?/ 1.551?inches | Depth | 56.6?mm?/ 2.228?inches |
Technology | Linect | Use | General mains applications |
Coding | A | Variable coding | Yes |
Marking | L ? N | Potential Marking | L ? N |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | When locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Type of distribution box | Linect?T-connector | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Contact type (pluggable connector) | Socket/plug | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.599MJ | Weight | 25.3g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-02 | eCl@ss 9.0 | 27-44-06-02 |
ETIM 9.0 | EC002566 | ETIM 8.0 | EC002566 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821000389 | Customs tariff number | 8536694030 |
CAS-No. | 131651-65-5 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 5966b72c-1fcb-4651-8dc3-6fbfcb292f60 | SCIP notification number (Belgium) | 0a350488-666b-4482-8f39-2e7152894647 |
SCIP notification number (Bulgaria) | ca449f1b-c10a-4791-8f94-a8a5d5311b3a | SCIP notification number (Czech Republic) | 52f57e2a-1602-4374-87fe-03a48e60ba43 |
SCIP notification number (Denmark) | 752f46fd-ec18-4bc4-be62-ed181a652af4 | SCIP notification number (Finland) | 639310bc-033e-4f8a-ad53-d4ba8df32601 |
SCIP notification number (France) | 1adde090-4b2d-45e4-aa65-77b138d766b6 | SCIP notification number (Germany) | 675e7859-4a71-4c40-86e2-41f7a7161b81 |
SCIP notification number (Hungary) | 00bf2c98-3239-42aa-9bc6-a9699adf6ce9 | SCIP notification number (Italy) | 4fe27c10-31be-4242-9599-3ac92162d5e8 |
SCIP notification number (Netherlands) | a476a03e-9b7a-4736-aa51-8b66d7a1f244 | SCIP notification number (Poland) | 91b54276-745c-4dd2-83eb-64221a78ffb2 |
SCIP notification number (Romania) | d34a9c6b-42da-4204-ab7b-db471cde4b56 | SCIP notification number (Sweden) | 78f8235e-df76-4471-9afe-0c3812b3a8b7 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current 2 | 16A |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 23A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 3 |
Specifications may be subject to change without notice
