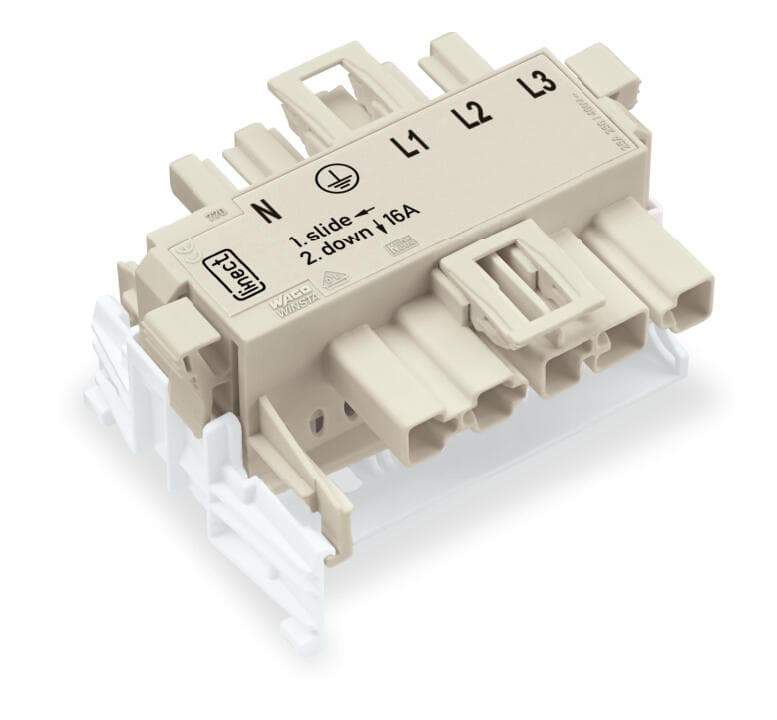

Product Model
770-6225
Selling Points
- 1Supports electrical currents up to 25 A, suitable for high power loads.
- 2Quick and reliable installation with Push-in CAGE CLAMP spring pressure connection technology.
- 3Built-in protection to prevent incorrect connections, ensuring error-free installation.
- 45-pole, white housing with a compact size of 75.5 mm x 40.5 mm x 56.6 mm.
- 5Meets IEC/EN 60664-1 and UL 1977 standards, ensuring compliance with safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 75.5?mm?/ 2.972?inches |
Height | 40.5?mm?/ 1.594?inches | Depth | 56.6?mm?/ 2.228?inches |
Technology | Linect | Use | General mains applications |
Coding | A | Marking | N ? L1 L2 L3 |
Potential Marking | N ? L1 L2 L3 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | When locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Type of distribution box | Linect?T-connector |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.942MJ |
Weight | 42.2g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821654278 |
Customs tariff number | 8536694030 | CAS-No. | 131651-65-5 |
REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a5294cac-2d4c-4def-ab31-86b284b6ff3e |
SCIP notification number (Belgium) | 3a90be1f-8018-4085-83db-cf5ac993ffdb | SCIP notification number (Bulgaria) | 0c1e1de2-15d0-4552-ae5c-a1403f3d5d18 |
SCIP notification number (Czech Republic) | 916e44b2-08b1-4e25-9885-622c7ad81bb8 | SCIP notification number (Denmark) | 6eba43dd-bd3f-4c4f-89cd-4f7927c1d98b |
SCIP notification number (Finland) | 43f5d785-8ce7-4d24-9380-a0ea415e1cb3 | SCIP notification number (France) | 2180e245-7ee2-49bf-968d-a4717d63ca5d |
SCIP notification number (Germany) | 05a3ad0d-597f-4c61-b202-1fc3a639b65b | SCIP notification number (Hungary) | 99d6a205-4bbe-47cc-b80f-f04ea1b73fbe |
SCIP notification number (Italy) | 4755257f-e5da-4398-b459-1daac2952f4a | SCIP notification number (Netherlands) | 1f179663-90cf-41dc-9757-c7672e796886 |
SCIP notification number (Poland) | 1b877ed7-303d-442e-acb2-82c391e16a56 | SCIP notification number (Romania) | 2fc37210-edee-48bf-96c2-f8f6f08911ef |
SCIP notification number (Sweden) | 1a4dde01-65d2-4ece-aaff-b1c619003e30 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current 2 | 16A | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 5 |
Specifications may be subject to change without notice
