Product Model

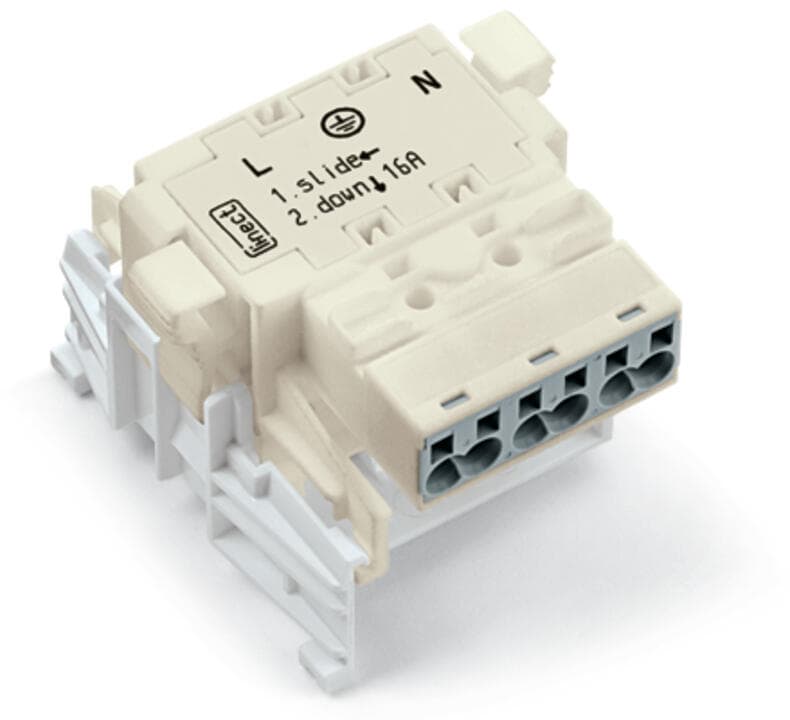

770-6229
Selling Points
- 1Efficient Installation: Quick and easy installation with push-in CAGE CLAMP technology.
- 2High Current Rating: Supports up to 25A, suitable for powerful loads.
- 3Mismating Protection: Ensures error-free installation with built-in mismating protection.
- 4Versatile Connectivity: Compatible with solid and stranded conductors (0.5-4 mm²).
- 5Durable Design: Made from polyamide (PA66) with copper or copper alloy contacts, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 50.5?mm?/ 1.988?inches |
Height | 40.8?mm?/ 1.606?inches | Depth | 54.9?mm?/ 2.161?inches |
Technology | Linect | Variable coding | No |
Marking | L ? N | Potential Marking | L ? N |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | When locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Type of distribution box | Linect?T-connector | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Contact type (pluggable connector) | Socket/plug | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.589MJ | Weight | 24.7g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-02 | eCl@ss 9.0 | 27-44-06-02 |
ETIM 9.0 | EC002566 | ETIM 8.0 | EC002566 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821621928 | Customs tariff number | 85366990990 |
CAS-No. | 131651-65-5 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 02afc781-ef37-4d62-8a5c-f7b15495631e | SCIP notification number (Belgium) | d042fa8d-c877-4e5a-a196-bbd1a9718513 |
SCIP notification number (Bulgaria) | aacac945-6357-4fb4-a3b1-f384f97debd5 | SCIP notification number (Czech Republic) | d04c5957-0b8a-4a8d-9f41-9165a26d9536 |
SCIP notification number (Denmark) | 742df261-62e8-45f6-89c7-92ac02d9fccf | SCIP notification number (Finland) | b406a6c7-ca9a-460e-aa08-904a5c712051 |
SCIP notification number (France) | 1d29337f-30ea-4d06-b401-797c5d686671 | SCIP notification number (Germany) | f4a2d167-c1fd-4bd2-969c-8572593911c0 |
SCIP notification number (Hungary) | 5fe139d3-423c-4c54-b496-21901d53ee1a | SCIP notification number (Italy) | 3472d882-abbf-4c60-81bb-5a4d8c603088 |
SCIP notification number (Netherlands) | 23db735e-d383-476f-b263-ac8226172a18 | SCIP notification number (Poland) | b70e8e52-2a74-48f8-8243-e5f9ec1379ab |
SCIP notification number (Romania) | 89185805-a522-4cb7-a317-36cf17bbb719 | SCIP notification number (Sweden) | 7f455865-9229-4e4c-b754-2ff67fbd3cb0 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current 2 | 16A |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 23A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | Push-in CAGE CLAMP? | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 1.5?mm2?/ 16?AWG |
Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG | Number of poles | 3 |
Specifications may be subject to change without notice
