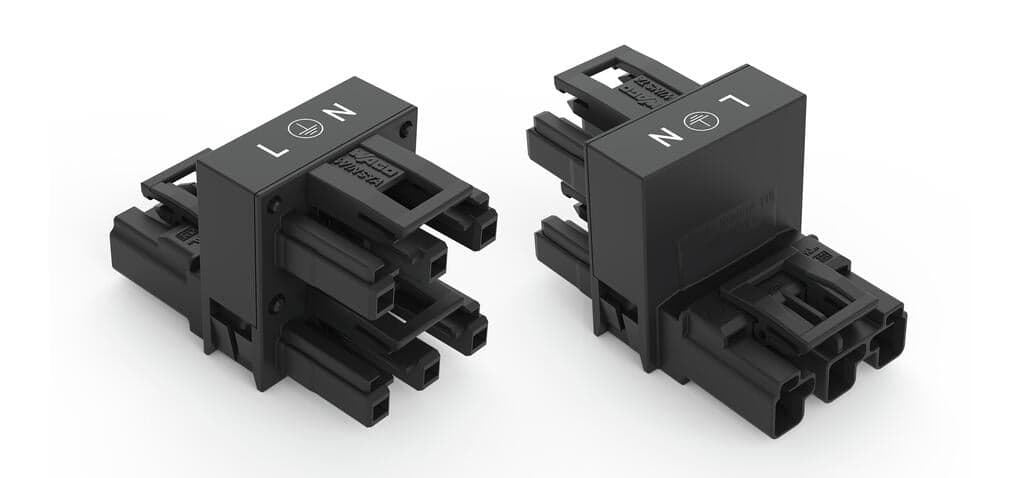

Product Model
770-636
Selling Points
- 1Secure Connections: Equipped with 3 locking levers for secure and reliable connections.
- 2High-Power Capability: Designed to handle loads up to 25 A, suitable for high-power applications.
- 3Efficient Design: Compact and lightweight, saving time and space in installations.
- 4Mismating Protection: 100% protected against mismating, ensuring safe and correct plug-in connections.
- 5Versatile Usage: Ideal for flying leads, junction boxes, and distribution boxes in various electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | PE function | Preceding PE contact |
Pin spacing | 10 mm / 0.394 inches | Width | 30 mm / 1.181 inches |
Height | 32.7 mm / 1.287 inches | Depth | 51 mm / 2.008 inches |
Use | General mains applications | Coding | A |
Marking | L ? N | Potential Marking | L ? N |
Mating force of a plug-in connection | Approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | When locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Type of distribution box | h-distribution connector, outputs at one end | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Suitable | for flying leads | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | Yes | Locking of plug-in connection | Locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Number of locking levers | 3 |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.552MJ | Weight | 22.8g |
Processing temperature | -5 … +40 °C | Continuous operating temperature | -35 … +85 °C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-03 |
eCl@ss 9.0 | 27-44-06-03 | ETIM 9.0 | EC002567 |
ETIM 8.0 | EC002567 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4045454251475 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 3 |
Specifications may be subject to change without notice
