Product Model

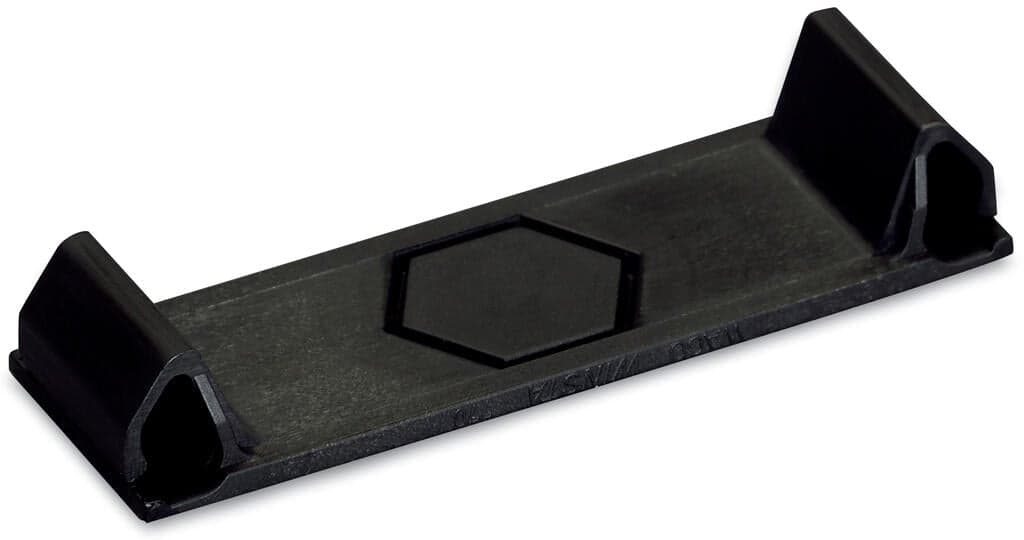

770-645
Selling Points
- 1The WAGO 770-645 lockout cap ensures secure connections in cutouts, preventing accidental disconnections.
- 2Its compact design makes it easy to install and use, enhancing the efficiency of your lighting installation.
- 3Made from high-quality plastic, this lockout cap is durable and resistant to wear and tear.
- 4The 5-pole design allows for straightforward installation, reducing setup time and effort.
- 5Designed to maintain safety by preventing unauthorized access to electrical connections, ensuring compliance with safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Snap-in flange | Suitable | for cutout |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.09MJ | Weight | 2.3g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332755467 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 5 |
Specifications may be subject to change without notice
