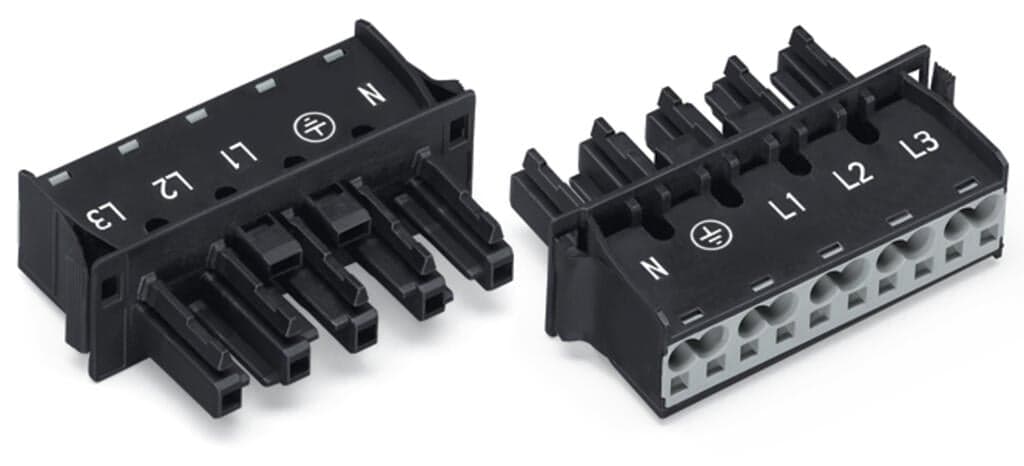

Product Model
770-705/009-000
Selling Points
- 1High-Power Capability: Supports electrical currents up to 25 A, suitable for demanding power loads.
- 2Snap-In Design: Easy installation with a snap-in mechanism, eliminating the need for screw connections.
- 3IP20 Protection: Protected against solid objects, ensuring reliable and secure connections.
- 4Durable Construction: Made with chrome-nickel spring steel and polyamide (PA66) insulation, providing long-lasting performance.
- 5Versatile Coding: Variable coding options reduce installation errors, ensuring fast and maintenance-free wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Clamping units | 10 |
Total number of potentials | 5 | Pin spacing | 10?mm?/ 0.394?inches |
Width | 55.5?mm?/ 2.185?inches | Height | 18.5?mm?/ 0.728?inches |
Depth | 37.5?mm?/ 1.476?inches | Use | General mains applications |
Coding | A | Variable coding | Yes |
Marking | N ? L1 L2 L3 | Potential Marking | N ? L1 L2 L3 |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | Locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches | Design | with protruding interface |
Mounting type | Snap-in flange | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.293MJ | Weight | 16.8g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143594165 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 1.5 … 4?mm2?/ 16 … 12?AWG |
Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 5 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
