Product Model

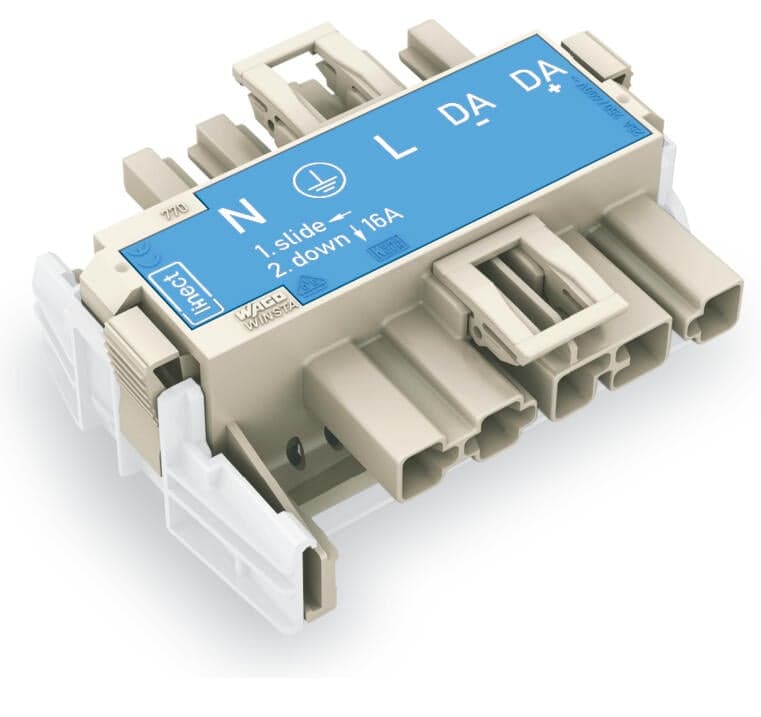

770-7105
Selling Points
- 1Universal Compatibility: Connects to various lighting systems via WINSTA pluggable connectors or conventional wiring.
- 2Efficient Installation: Plug-and-play design for fast and easy installation of recessed luminaires.
- 3High Reliability: Rated for 400 V and 25 A, ensuring reliable power distribution in lighting installations.
- 4Easy Maintenance: Quick replacement of lights without needing to open the fixture, reducing downtime.
- 5Durable Construction: Built with polycarbonate (PC) and chrome nickel spring steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | PE function | Preceding PE contact |
Pin spacing | 10?mm?/ 0.394?inches | Width | 75.5?mm?/ 2.972?inches |
Height | 40.5?mm?/ 1.594?inches | Depth | 56.6?mm?/ 2.228?inches |
Use | DALI, Lighting Management | Coding | I |
Variable coding | No | Marking | N ? L DA- DA+ |
Potential Marking | N ? L DA- DA+ | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | When locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Type of distribution box | Linect?T-connector |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | blue | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.922MJ |
Weight | 41.1g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821000402 |
Customs tariff number | 8536694030 | CAS-No. | 131651-65-5 |
REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | aa3b6b25-f159-40f1-a839-e1990ac0087b |
SCIP notification number (Belgium) | bcf0ed1b-d2a6-4a15-91c2-45ae1524391f | SCIP notification number (Bulgaria) | dbdffb0b-896d-4af5-b33e-5eb27c5db145 |
SCIP notification number (Czech Republic) | 8052bba5-64ab-4f5a-8b8d-f6681f6ea87f | SCIP notification number (Denmark) | d826f846-ffc0-45ec-8f78-7bfa92767954 |
SCIP notification number (Finland) | 869c621f-fad1-4816-939a-47b54190a9d5 | SCIP notification number (France) | d37e6c09-29cc-4a56-be50-cbb191446213 |
SCIP notification number (Germany) | 5ebc786a-dbd2-4400-bb7c-e0c1fa629f38 | SCIP notification number (Hungary) | 7213a003-02ce-44cd-bdc2-6e6d9383b7bf |
SCIP notification number (Italy) | 2ecf5e19-e915-48cd-9818-4af8aff3683a | SCIP notification number (Netherlands) | c18f3f94-d952-49e5-9bb3-ddb3e09e3002 |
SCIP notification number (Poland) | 6dceed6d-7204-4b16-a37f-b18fb3105e39 | SCIP notification number (Romania) | 3454d912-995e-4c6d-9a6c-d48de76b0dde |
SCIP notification number (Sweden) | 098d4581-1b9b-42d8-aea6-2a13e298b5df | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current 2 | 16A | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 5 |
