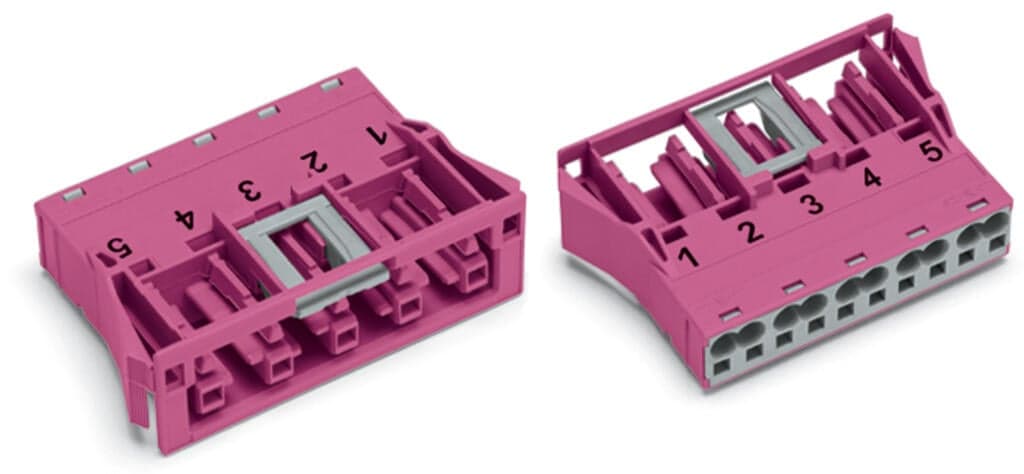

Product Model
770-785
Selling Points
- 1Snap-in Design for Easy Installation: Quick and secure mounting without tools.
- 2Mismating Protection: 100% protected against mismating, ensuring safe connections.
- 3High Current Rating: Supports up to 25 A with a rated voltage of 400 V.
- 4Durable Materials: Constructed with polyamide 66 and chrome nickel spring steel for long-lasting performance.
- 5IP20 Protection Class: Suitable for use in protected environments, ensuring reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Variants: | Other pole markings |
Clamping units | 10 | Total number of potentials | 5 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 55.5?mm?/ 2.185?inches |
Height | 18.5?mm?/ 0.728?inches | Depth | 37.5?mm?/ 1.476?inches |
Use | Control technology | Coding | B |
Variable coding | Yes | Marking | 1 2 3 4 5 |
Potential Marking | 1 2 3 4 5 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches |
Mounting type | Snap-in flange | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | pink | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.35MJ | Weight | 18.7g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-02 | eCl@ss 9.0 | 27-44-06-02 |
ETIM 9.0 | EC002566 | ETIM 8.0 | EC002566 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143594400 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated current (note) | 25 A for 3-pole load20 A for 4- and 5-pole load | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 1.5 … 4?mm2?/ 16 … 12?AWG |
Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 5 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
