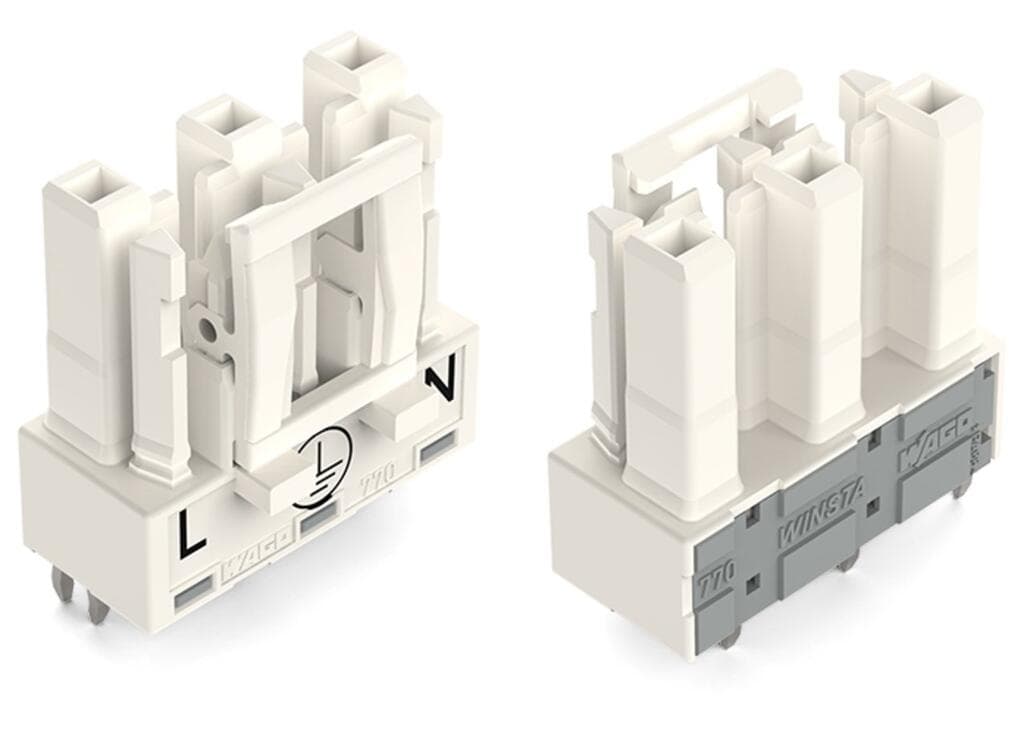

Product Model
770-823
Selling Points
- 1Made from chrome-nickel spring steel and copper or copper alloy contacts for durability and conductivity.
- 2Push-in CAGE CLAMP technology ensures quick and secure termination of solid conductors.
- 3100% protected against mismating to prevent errors during connection.
- 4Continuous operating temperature from -35°C to +85°C for versatile application.
- 5DEKRA certification, UL 1977 approval, and compliance with IEC/EN 60664-1 for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | Number of levels | 1 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 27?mm?/ 1.063?inches |
Height | 29.5?mm?/ 1.161?inches | Height from the surface | 26?mm?/ 1.024?inches |
Depth | 14.6?mm?/ 0.575?inches | Solder pin length | 3.5mm |
Solder pin dimensions | 1 x 0.8?mm | Drilled hole diameter with tolerance | 1.5(-0.1 … +0.1)mm |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | L ? N |
Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Design | straight |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for PCB |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Mating direction to the PCB | 90° | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
PCB contact | THT | Solder pin arrangement | 2 in-line solder pins/pole |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.117MJ | Weight | 6.3g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-05 |
eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918684675 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 3 |
Specifications may be subject to change without notice
