Product Model

770-845/011-000

Manufacturer

wago

Category

Pcb Interconnect

Product ID

39983

In Stock
Last updated: 2025/4/19
View Specifications

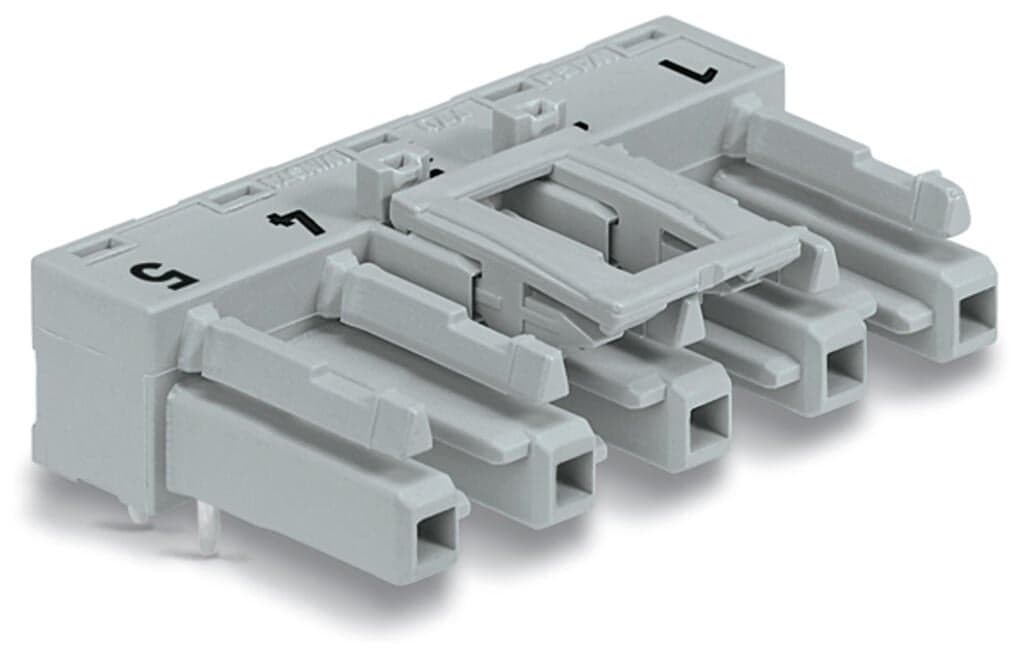

wago 770-845/011-000

Selling Points

  • 1High Voltage Rating: Supports up to 400 volts, ensuring robust electrical connections.
  • 2Angled Design: Conveniently angled for easy PCB mounting, reducing installation time.
  • 3Mismating Protection: 100% protected against mismating, preventing errors and ensuring secure connections.
  • 4High Current Capacity: Handles up to 25 amperes, suitable for demanding automation applications.
  • 5Durable Materials: Constructed with polyamide insulation and chrome-nickel spring steel clamping springs, ensuring long-lasting performance.
Product Details
770-845/011-000
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Variants:
Other pole markings
Total number of potentials
5
Number of levels
1
Pin spacing
10?mm?/ 0.394?inches
Width
47?mm?/ 1.85?inches
Height
18.1?mm?/ 0.713?inches
Height from the surface
14.6?mm?/ 0.575?inches
Depth
26?mm?/ 1.024?inches
Solder pin length
3.5mm
Solder pin dimensions
1 x 0.8?mm
Drilled hole diameter with tolerance
1.5(-0.1 … +0.1)mm
Use
Control technology
Coding
B
Variable coding
Yes
Marking
1 2 3 4 5
Potential Marking
1 2 3 4 5
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection
Locked: > 80 N
Unmating force of a plug-in connection
Unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Design
angled
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for PCB
Mismating protection
Yes
Note on mismating protection
AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Mating direction to the PCB
0°
Locking lever
yes
Locking of plug-in connection
locking lever
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
PCB contact
THT
Solder pin arrangement
2 in-line solder pins/pole
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
Color
gray
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Fire load
0.189MJ
Weight
10.4g
Processing temperature
-5 … +40?°C
Continuous operating temperature
-35 … +85?°C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Product Group
20 (Winsta)
eCl@ss 10.0
27-44-06-05
eCl@ss 9.0
27-44-06-05
ETIM 9.0
EC002637
ETIM 8.0
EC002637
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
PL
GTIN
4017332802642
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
400V
Rated impulse voltage (III / 3)
6kV
Rated current
25A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Rated current (note)
25 A for 3-pole load20 A for 4- and 5-pole load
Note for the US market
Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
Rated voltage (UL 1977)
600V
Rated current UL 1977
23A
Note on contact resistance
approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket
Number of poles
5

Specifications may be subject to change without notice
