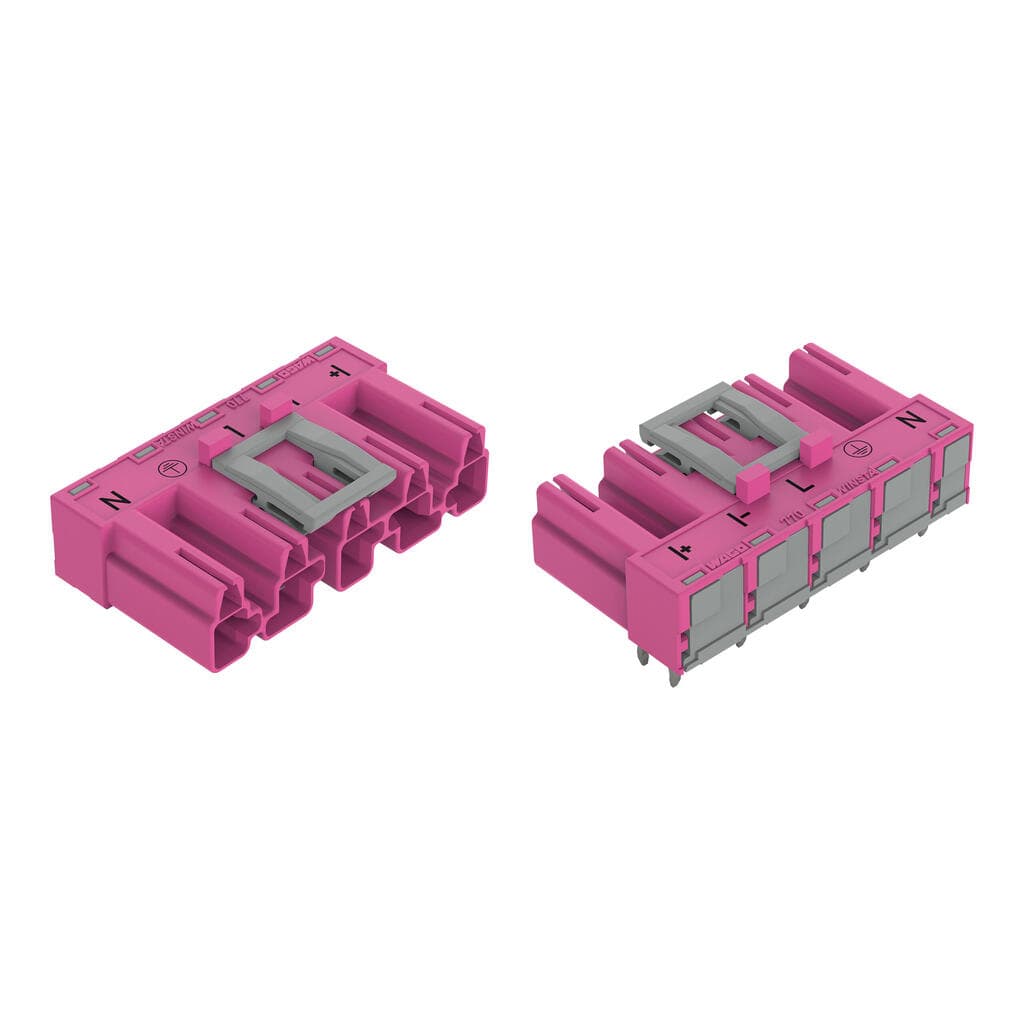

WAGO 770-895/011-000/080-000: Angled 5-Pole PCB Plug with Mismating Protection

Selling Points

1Angled Design for Easy Installation: The plug features an angled design for effortless mounting on PCBs.
25-Pole Configuration: Equipped with 5 poles to handle multiple connections efficiently.
3Mismating Protection: Ensures secure connections by preventing incorrect mating of connectors.
4High Current Capacity: Supports up to 25 A, making it suitable for both signal and power transmission.
5Durable Construction: Built with high-quality materials, including copper or copper alloy contacts and chrome-nickel spring steel clamping springs.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Variants:	Other pole markings	Total number of potentials	5
Number of levels	1	Pin spacing	10?mm?/ 0.394?inches
Width	47?mm?/ 1.85?inches	Height	18.1?mm?/ 0.713?inches
Height from the surface	14.6?mm?/ 0.575?inches	Depth	26?mm?/ 1.024?inches
Solder pin length	3.5mm	Solder pin dimensions	1 x 0.8?mm
Drilled hole diameter with tolerance	1.5(-0.1 … +0.1)mm	Technology	SMI
Use	Control technology	Coding	B
Variable coding	Yes	Marking	I+ I- L ? N
Potential Marking	I+ I- L ? N	Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection	Locked: > 80 N	Unmating force of a plug-in connection	Unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles	200, without resistive load	Design	angled
Contact type (pluggable connector)	Male connector/plug	Connector (connection type)	for PCB
Mismating protection	Yes	Note on mismating protection	AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Mating direction to the PCB	0°	Locking lever	yes
Locking of plug-in connection	locking lever	Note on locking system	All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
PCB contact	THT	Solder pin arrangement	2 in-line solder pins/pole
Number of solder pins per potential	2	Note (material data)	Information on material specifications can be found here
Color	pink	Insulation material (main housing)	Polyamide (PA66)
Flammability class per UL94	V0	Clamping spring material	Chrome-nickel spring steel (CrNi)
Contact material	Copper or copper alloy; surface-treated	Contact plating	Tin
Fire load	0.231MJ	Weight	10.7g
Processing temperature	-5 … +40?°C	Continuous operating temperature	-35 … +85?°C
Note on continuous operating temperature	Insulating parts for temperatures ≤ 105 °C	eCl@ss 10.0	27-44-06-05
eCl@ss 9.0	27-44-06-05	ETIM 9.0	EC002637
ETIM 8.0	EC002637	ECCN	NO US CLASSIFICATION
PU (SPU)	50?pcs	Packaging type	box
Country of origin	PL	GTIN	4050821553922
Customs tariff number	8536694040	RoHS Compliance Status	Compliant,No Exemption
Ratings per	IEC/EN 60664-1	Rated voltage (III / 3)	400V
Rated impulse voltage (III / 3)	6kV	Rated current	25A
Legend (ratings)	(III / 3) ? Overvoltage category III / Pollution degree 3	Rated current (note)	25 A for 3-pole load20 A for 4- and 5-pole load
Note for the US market	Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.	Rated voltage (UL 1977)	600V
Rated current UL 1977	23A	Note on contact resistance	approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket
Number of poles	5

Specifications may be subject to change without notice
