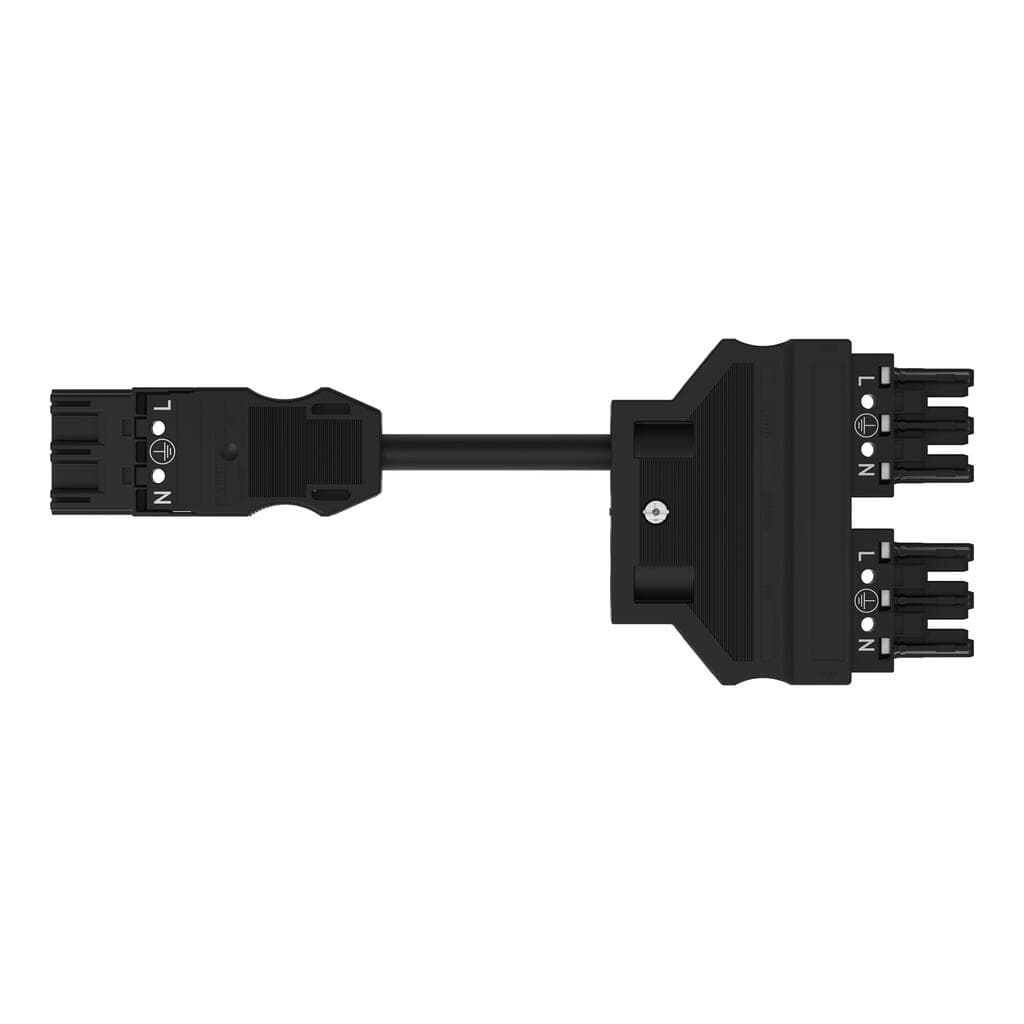

Product Model
771-5001/296-000
Selling Points
- 1Robust 20A Current Rating: Designed to handle high current loads in industrial settings.
- 2IP20 Protection: Effective protection against solid objects and ingress, ensuring reliable connections.
- 3Pre-Assembled Y-Cable: Convenient and time-saving solution for various automation applications.
- 4Copper or Copper Alloy Contacts: High-quality, surface-treated contacts for secure connections.
- 5Halogen-Free Sheath Material: Compliant with environmental regulations, suitable for diverse installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 3 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 72?mm?/ 2.835?inches |
Height | 16.8?mm?/ 0.661?inches | Total length | 0.5m |
Coding | A | Variable coding | Yes |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | when locked: > 80N |
Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Type of pre-assembled cable | Y-cable | Cable type | H05VV-F 3G2.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | Locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | black |
Fire class per EN 50575 | Eca | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 22.421MJ |
Printing color of strain relief | white | Sheathed cable color | black |
Printing color of sheathed cable | white | Halogen-free | No |
Silicon-free | Yes | Sheath material | Halogen-free |
Rubber cable | No | Weight | 129.7g |
Processing temperature | -5 … +40 °C | Continuous operating temperature | -35 … +85 °C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4066966301991 |
Customs tariff number | 85444290900 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Wire cross-section | 2.5mm2 |
