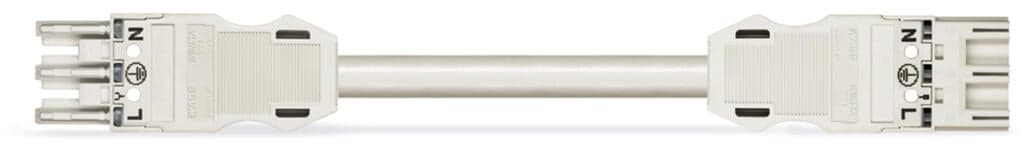

Product Model
771-9293/016-702
Selling Points
- 1Efficient Installation: Fast and error-free installation with spring pressure connection technology.
- 2Secure Connections: Protected against mismating with mechanical protection.
- 3High-Quality Materials: Made from halogen-free polyamide (PA66) and copper or copper alloy contacts.
- 4Wide Temperature Range: Operates from -35°C to +85°C, ensuring reliability in various environments.
- 5Compliance and Safety: RoHS compliant, meeting strict environmental and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 3 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 27?mm?/ 1.063?inches |
Height | 12.9?mm?/ 0.508?inches | Total length | 7m |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | L ? N |
Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Plug |
Type of pre-assembled cable | Interconnecting cable | Cable type | H05Z1Z1-F 3G1.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | Locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire class per EN 50575 | B2ca | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.62MJ |
Connector color | white | Strain relief color | white |
Sheathed cable color | white | Printing color of sheathed cable | black |
Halogen-free | Yes | Silicon-free | Yes |
Sheath material | Halogen-free | Rubber cable | No |
Weight | 728.6g | Copper weight of the pipe | 0.043kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4066966219470 |
Customs tariff number | 85444290900 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 3 | Wire cross-section | 1.5mm2 |
Specifications may be subject to change without notice
