Product Model

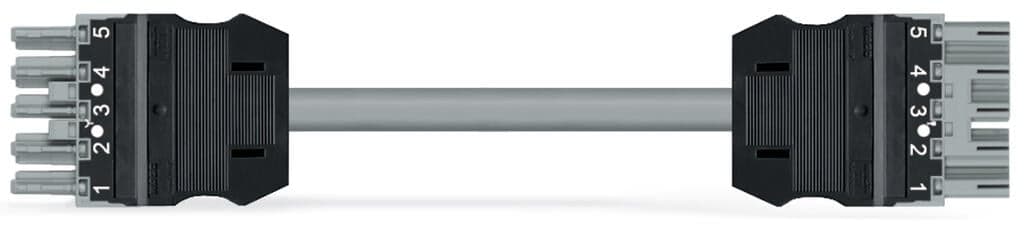

771-9395/066-103
Selling Points
- 1Efficient Installation: Rapid, structured electrical installation with pluggable connectors.
- 2High-Quality Materials: Made from halogen-free materials, including polyamide (PA66) insulation and copper or copper alloy contacts.
- 3Robust Design: Supports up to 16A rated current and 400V nominal voltage with overvoltage category III/3.
- 4Error-Free Coding: Variable coding options reduce installation errors and ensure accurate wiring.
- 5Compliance and Safety: RoHS compliant, with flammability class V0 and protection type IP20 for safe use in building installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Variants: | Other pole markings |
Total number of potentials | 5 | Pin spacing | 10?mm?/ 0.394?inches |
Width | 47?mm?/ 1.85?inches | Total length | 1m |
Use | Control technology | Coding | B |
Variable coding | Yes | Marking | 1 2 3 4 5 |
Potential Marking | 1 2 3 4 5 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Plug |
Type of pre-assembled cable | Interconnecting cable | Cable type | Control line 5x1.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | Locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire class per EN 50575 | Cca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 1.102MJ | Connector color | gray |
Strain relief color | black | Printing color of strain relief | white |
Sheathed cable color | gray | Printing color of sheathed cable | black |
Halogen-free | Yes | Silicon-free | Yes |
Sheath material | Halogen-free | Rubber cable | No |
Weight | 212.1g | Copper weight of the pipe | 0.072kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4055144101423 |
Customs tariff number | 85444290900 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 5 | Wire cross-section | 1.5mm2 |
Specifications may be subject to change without notice
