Product Model

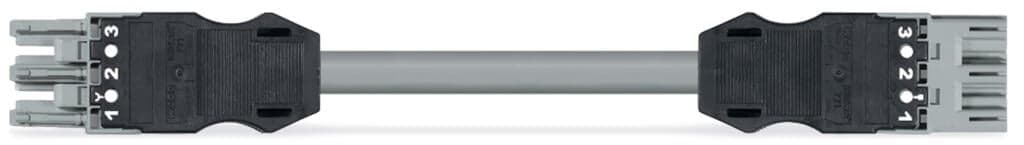

771-9993/006-203
Selling Points
- 13-Pole Configuration: Designed for control technology applications with a 3-pole configuration.
- 2Gray Color: Available in a durable gray color for easy identification.
- 32-Meter Length: Conveniently sized at 2 meters for various installation needs.
- 4High-Quality Material: Constructed with high-quality (H)05VV-F 3x1,5 mm² material for reliability.
- 5Easy Installation: Features a plug/socket connection for quick and easy setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Variants: | Other pole markings |
Total number of potentials | 3 | Pin spacing | 10?mm?/ 0.394?inches |
Width | 27?mm?/ 1.063?inches | Total length | 2m |
Use | Control technology | Coding | B |
Variable coding | Yes | Marking | 1 2 3 |
Potential Marking | 1 2 3 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Plug |
Type of pre-assembled cable | Interconnecting cable | Cable type | H05VV-F 3x1.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.622MJ | Connector color | gray |
Strain relief color | black | Printing color of strain relief | white |
Sheathed cable color | gray | Printing color of sheathed cable | black |
Halogen-free | No | Silicon-free | Yes |
Sheath material | PVC | Rubber cable | No |
Weight | 217.6g | Copper weight of the pipe | 0.043kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-04 |
eCl@ss 9.0 | 27-44-06-04 | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4050821274247 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 3 | Wire cross-section | 1.5mm2 |
Specifications may be subject to change without notice
