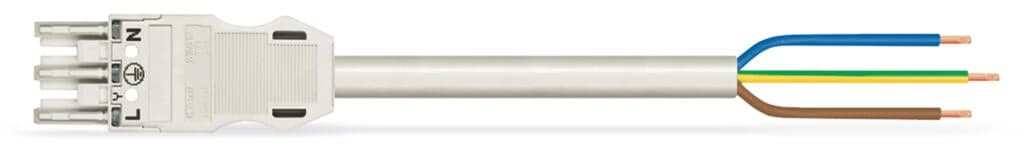

Product Model
771-9993/117-102
Selling Points
- 1High-Power Capability: Supports up to 20A rated current for high-power applications.
- 2Pre-Assembled Convenience: Comes pre-assembled with a 3-pole configuration for quick installation.
- 3Mismating Protection: Features mismating protection to ensure secure connections.
- 4IP20 Protection: Offers protection against solid objects and liquids, ensuring reliable operation.
- 5RoHS Compliance: Meets RoHS compliance standards, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 3 |
PE function | Preceding PE contact | Conductor preparation | ultrasonically tip-bonded |
Pin spacing | 10?mm?/ 0.394?inches | Width | 27 mm / 1.063 inches |
Height | 12.9?mm?/ 0.508?inches | Total length | 1m |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | L ? N |
Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Free end |
Type of pre-assembled cable | Connecting cable | Cable type | H05Z1Z1-F 3G2.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 29.715MJ | Connector color | white |
Strain relief color | white | Printing color of strain relief | black |
Sheathed cable color | white | Printing color of sheathed cable | black |
Halogen-free | Yes | Silicon-free | Yes |
Sheath material | Halogen-free | Rubber cable | No |
Weight | 157g | Copper weight of the pipe | 0.072kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-04 |
eCl@ss 9.0 | 27-44-06-04 | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4044918587907 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Strip length | 9?mm?/ 0.35?inches | Number of poles | 3 |
Wire cross-section | 2.5mm2 | Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
