Product Model

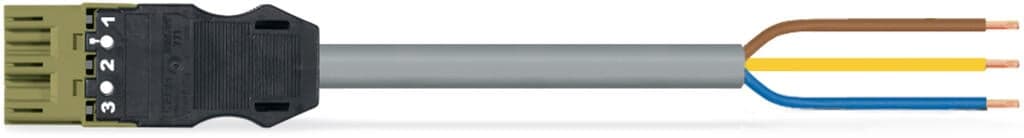

771-9993/205-305
Selling Points
- 1High-reliability connectors designed for demanding industrial environments.
- 2Versatile connections for various applications, including automation and control systems.
- 3Easy-to-use push-in technology simplifies installation and reduces errors.
- 4Robust construction ensures durability and long-term performance.
- 5Compatible with a wide range of industrial devices and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Variants: | Other pole markings |
Total number of potentials | 3 | Conductor preparation | ultrasonically tip-bonded |
Pin spacing | 10?mm?/ 0.394?inches | Width | 27?mm?/ 1.063?inches |
Height | 12.9 mm / 0.508 inches | Total length | 3m |
Use | Control technology | Coding | B |
Variable coding | Yes | Marking | 1 2 3 |
Potential Marking | 1 2 3 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Plug - Free end |
Type of pre-assembled cable | Connecting cable | Cable type | H05VV-F 3x1 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | light green |
Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.33MJ | Connector color | light green |
Strain relief color | black | Printing color of strain relief | white |
Sheathed cable color | gray | Printing color of sheathed cable | black |
Halogen-free | No | Silicon-free | Yes |
Sheath material | PVC | Rubber cable | No |
Weight | 229.5g | Copper weight of the pipe | 0.029kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-04 |
eCl@ss 9.0 | 27-44-06-04 | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4055143822251 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 10A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Strip length | 9?mm?/ 0.35?inches | Number of poles | 3 |
Wire cross-section | 1mm2 | Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
