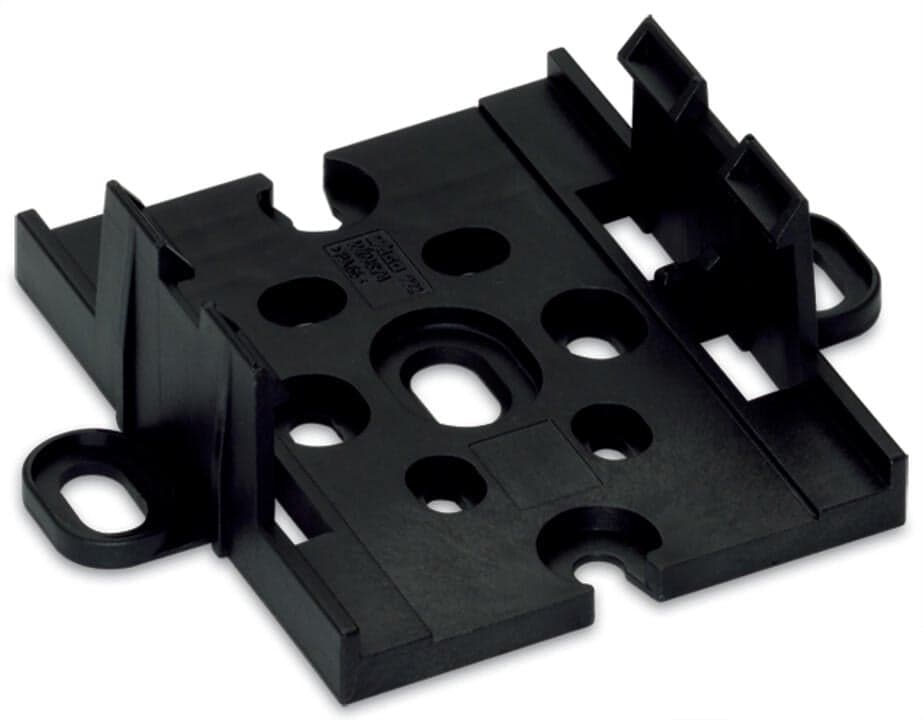

Product Model
772-260
Selling Points
- 1Ensures consistent and secure electrical connections.
- 2Suitable for a wide range of applications, including lighting and industrial use.
- 3Built with robust materials to withstand harsh environments.
- 4Snap-in device connection with CAGE CLAMP technology for quick and simple installation.
- 5Available in various colors and configurations to meet specific needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Screw mounting | Suitable | for Supply and Tap-off Modules |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.346MJ | Weight | 11.6g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454543983 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
