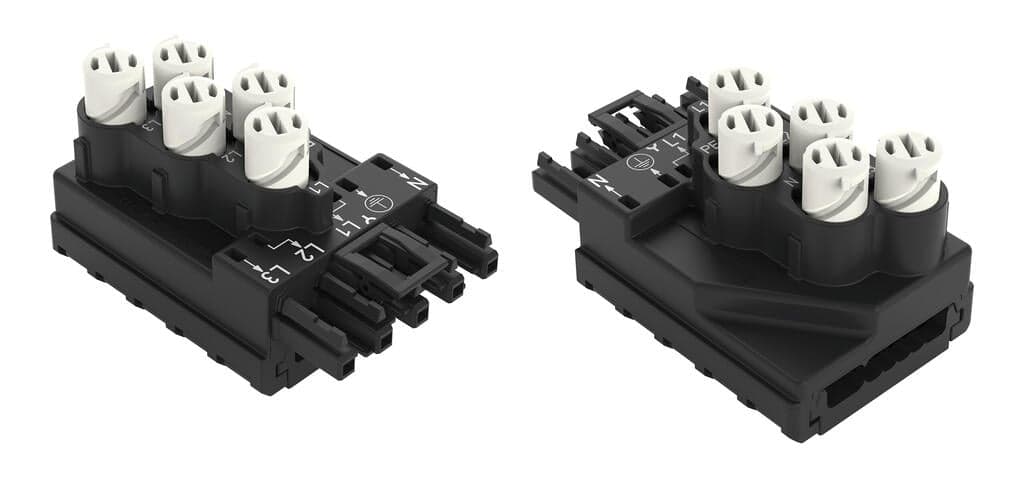

Product Model
772-262
Selling Points
- 1Effortless Installation: Easy to use with insulation displacement technology (IDC) for quick and secure connections without tools.
- 2High-Quality Construction: Built with durable materials, including polyamide 66 (PA 66) and copper or copper alloy, ensuring long-lasting performance.
- 3Reliable Performance: Designed for general mains applications with a contact resistance of approximately 1 mΩ and up to 25 A rated current.
- 4Versatile Compatibility: Suitable for bus and power lines or combined in one cable, making it versatile for various electrical applications.
- 5Enhanced Safety Features: Protected against ingress by solid objects with IP20 protection type and includes mismating protection for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | Width | 50?mm?/ 1.969?inches |
Height | 46.5?mm?/ 1.831?inches | Depth | 79?mm?/ 3.11?inches |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | N ? L1 L2 L3 |
Potential Marking | N ? L1 L2 L3 | Retention force of a plug-in connection | When locked: > 80 N |
Number of mating cycles | 200, without resistive load | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Suitable | for flat cable 5 x 2.5 mm2, 5 x 4 mm2, 5 x 2.5 mm2 + 2 x 1.5 mm2 | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 1.834MJ |
Weight | 76.4g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-01 |
eCl@ss 9.0 | 27-44-06-01 | ETIM 9.0 | EC002588 |
ETIM 8.0 | EC002588 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454062002 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | IDC connection | Actuation type | Operating tool |
Number of poles | 5 |
Specifications may be subject to change without notice
