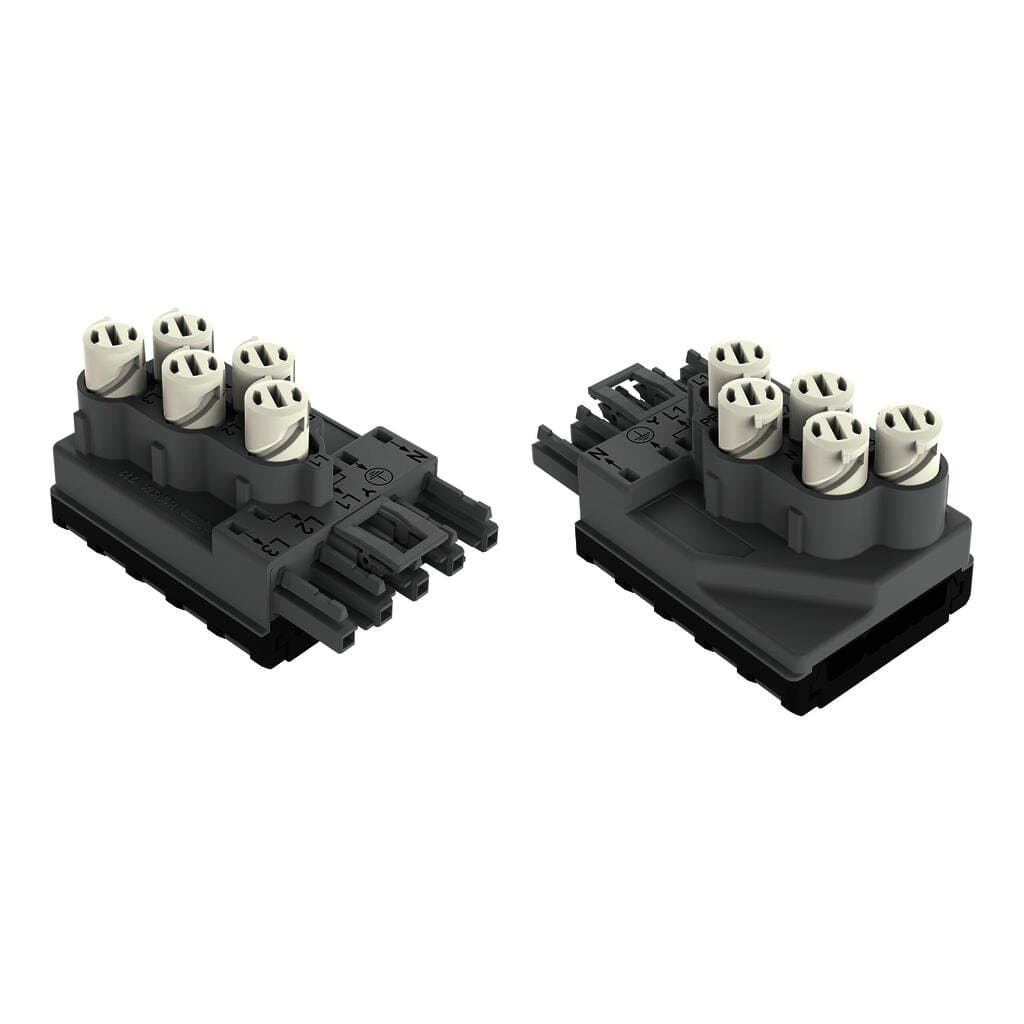

Product Model
772-265/060-000
Selling Points
- 1High-quality electrical connectors designed for demanding applications.
- 2Reliable and durable construction ensures long-lasting performance.
- 3Easy installation with snap-in connections and secure locking mechanism.
- 4Ideal for use in industrial automation, robotics, and control systems.
- 5Meets international standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 5 | Width | 50?mm?/ 1.969?inches |
Height | 46.5?mm?/ 1.831?inches | Depth | 79?mm?/ 3.11?inches |
Use | Control technology | Coding | B |
Variable coding | Yes | Marking | N ? L1 L2 L3 |
Potential Marking | N ? L1 L2 L3 | Retention force of a plug-in connection | When locked: > 80 N |
Number of mating cycles | 200, without resistive load | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Suitable | for flat cable 5 x 2.5 mm2, 5 x 4 mm2, 5 x 2.5 mm2 + 2 x 1.5 mm2 | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 1.757MJ |
Weight | 75.8g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-01 | eCl@ss 9.0 | 27-44-06-01 |
ETIM 9.0 | EC002588 | ETIM 8.0 | EC002588 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821585787 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | IDC connection |
Actuation type | Operating tool | Number of poles | 5 |
Specifications may be subject to change without notice
