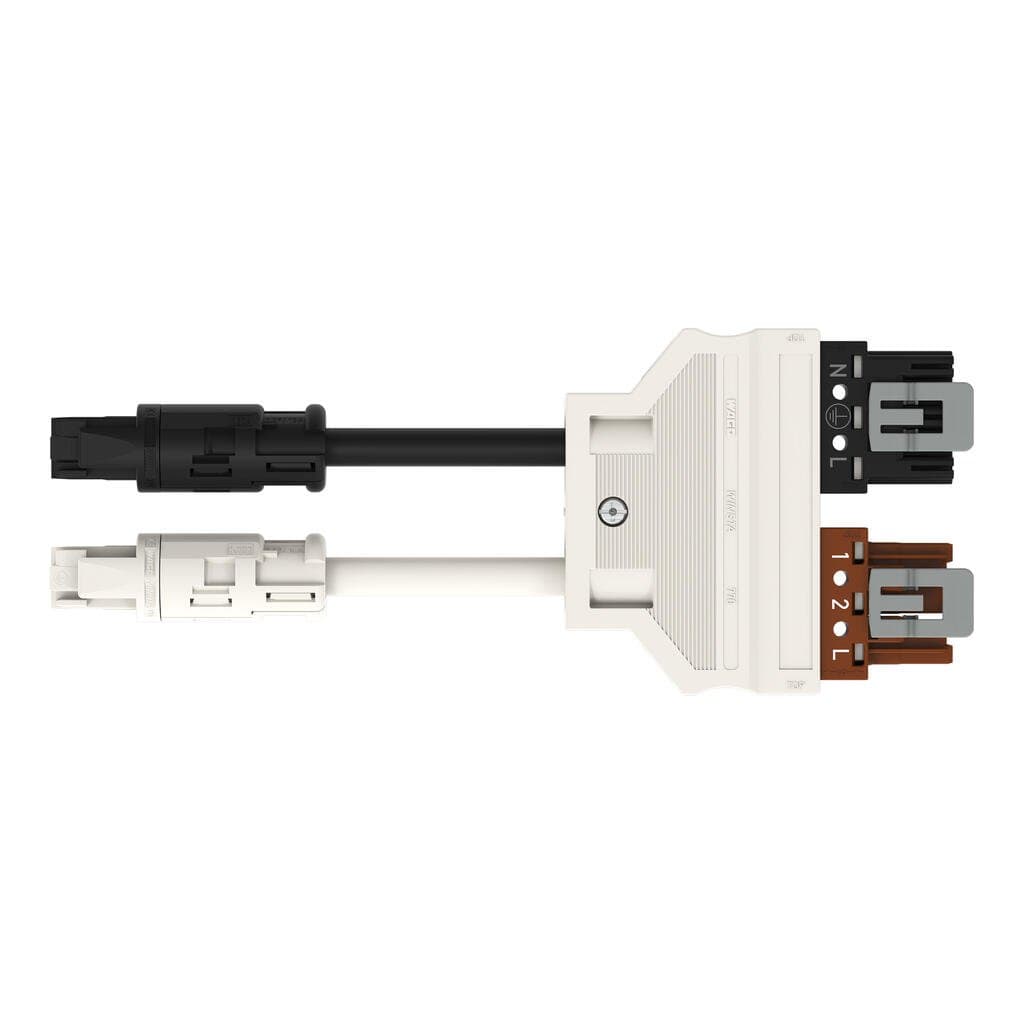

Product Model
774-5001/102-000
Selling Points
- 1Valmiiksi asennettu Y-kaapeli, nopea asennus.
- 2Suojattu IP20, turvallinen käyttö.
- 3Käytössä oleva Eca ja Kood. A/S.
- 4H05VV-F 3G materiaali, kestävä.
- 516 A rated current, riittävä virta.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 4 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 72?mm?/ 2.835?inches |
Height | 17.5?mm?/ 0.689?inches | Total length | 0.4m |
Use | General mains applications | Coding | A |
Coding 2 | A | Variable coding | Yes |
Marking | L ? N | Mating force of a plug-in connection | Approx. 30 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | Unlocked: approx. 30 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | RD socket;?RD socket - MIDI plug;?MIDI socket |
Type of pre-assembled cable | Y-cable | Cable type | H05VV-F 3G2.5 |
Cable type 2 | H05VV-F 3G1.5 | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating ?when:a.) plugging different numbers of polesb.) plugging while incorrectly rotatedc.) plugging while laterally staggered |
Locking of plug-in connection | Locking lever | Note (material data) | Information on material specifications can be found here |
Fire class per EN 50575 | Eca | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 25.722MJ |
Connector color | black | Printing color of mating face | white |
Strain relief color | black | Connector color 2 | white |
Strain relief color 2 | white | Connector color 3 | black |
Strain relief color 3 | black | Connector color 4 | brown |
Sheathed cable color | black | Printing color of sheathed cable | white |
Sheathed cable color 2 | white | Printing color of sheathed cable 2 | black |
Halogen-free | No | Silicon-free | Yes |
Sheath material | PVC | Rubber cable | No |
Weight | 150.3g | Copper weight of the pipe | 0.043kg/m |
Processing temperature | -5 … +40 °C | Continuous operating temperature | -35 … +85 °C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4066966302264 |
Customs tariff number | 85444290900 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 3 | Wire cross-section | 2.5mm2 |
Pole number (2) | 3 | Sheathed cable diameter 2 | 7.4 … 9.4?mm |
Wire cross-section (2) | 1.5mm2 | Pole number (3) | 3 |
Pole number (4) | 3 |
Specifications may be subject to change without notice
