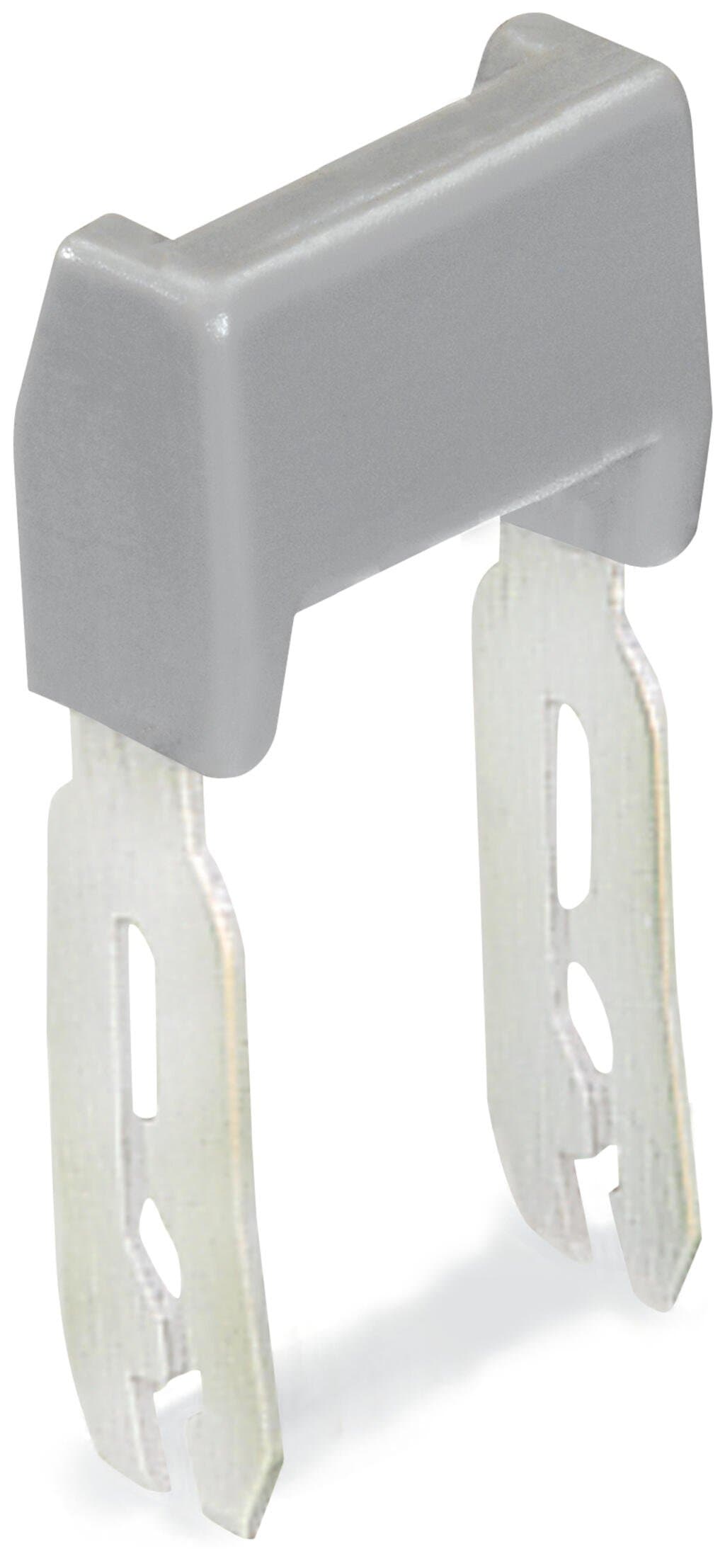

Product Model
780-456
Selling Points
- 1Insulated design for reliable connections.
- 2Rated current of 24A for high-performance applications.
- 3Suitable for 2-conductor female plugs.
- 4Gray color for easy identification in complex circuits.
- 5Compact dimensions (6 mm height, 24.5 mm width).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.5?mm?/ 0.965?inches | Height | 6?mm?/ 0.236?inches |
Jumper assignment | 1-6 | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.017MJ |
Weight | 2.3g | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918271028 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
Specifications may be subject to change without notice
