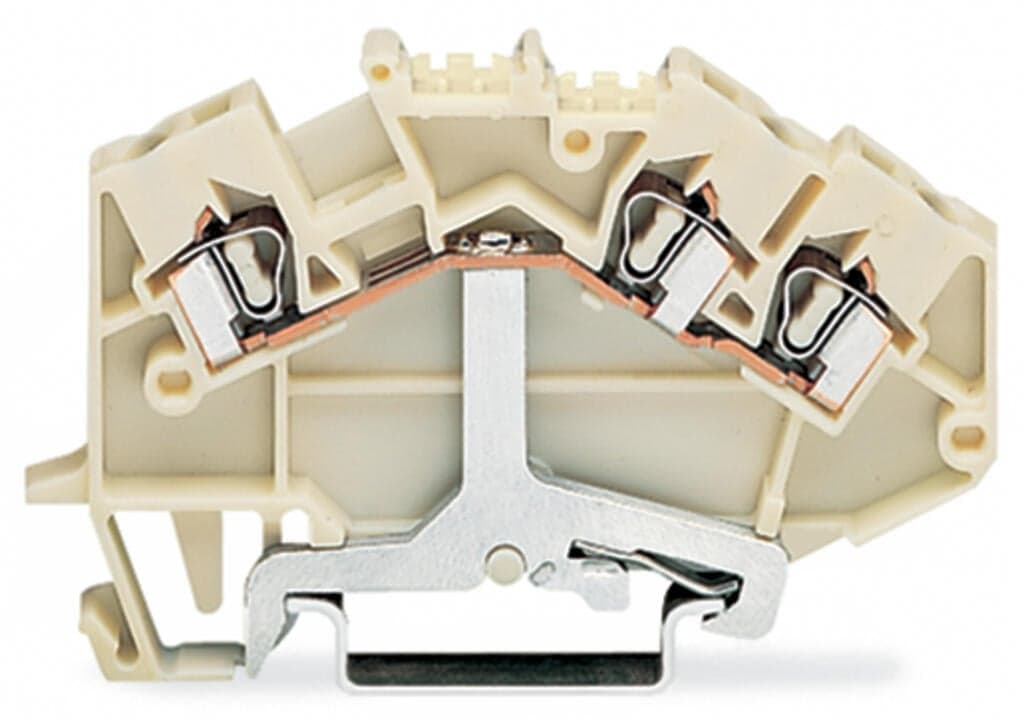

Product Model
780-640
Selling Points
- 1Angled rail mount design for easy installation.
- 23-conductor terminal block for versatile connectivity.
- 35 mm wide, compact and space-efficient.
- 4White color for clear visibility in industrial settings.
- 5Compatible with WAGO TOPJOB Classic series.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 77?mm?/ 3.031?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 14.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454084684 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 62b19b60-7b91-4ad8-bd83-d932e64b8138 | SCIP notification number (Belgium) | 3f6973af-194f-49ce-a075-388a8fe728cc |
SCIP notification number (Bulgaria) | 5e6605e2-c216-4a1a-92c8-1e224bbe77b0 | SCIP notification number (Czech Republic) | 42d27df9-6517-4568-9459-ac30752cfb2a |
SCIP notification number (Denmark) | 99ad4f1f-c05b-4389-9a33-9d37e9a328df | SCIP notification number (Finland) | ad767cd0-e5a3-4ca6-9a41-fb8e8401f576 |
SCIP notification number (France) | fdfef273-7b08-4e3e-be44-f88b821d5a74 | SCIP notification number (Germany) | 0e990cb4-3578-45a6-9427-1c43b90986d3 |
SCIP notification number (Hungary) | fec347b7-69e5-4613-adea-38a8569d3b85 | SCIP notification number (Italy) | 92bb25f0-2783-418c-b479-2c7808e16d61 |
SCIP notification number (Netherlands) | 43a7bd00-c114-479e-bbec-8374ee3245e4 | SCIP notification number (Poland) | 7ecfc409-94d8-4d42-997a-c66d578f84d1 |
SCIP notification number (Romania) | 513a57c8-33c5-400a-8610-3106337bd63d | SCIP notification number (Sweden) | b6f4a71f-b61b-4e1d-9a25-2353d8b9fc91 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
