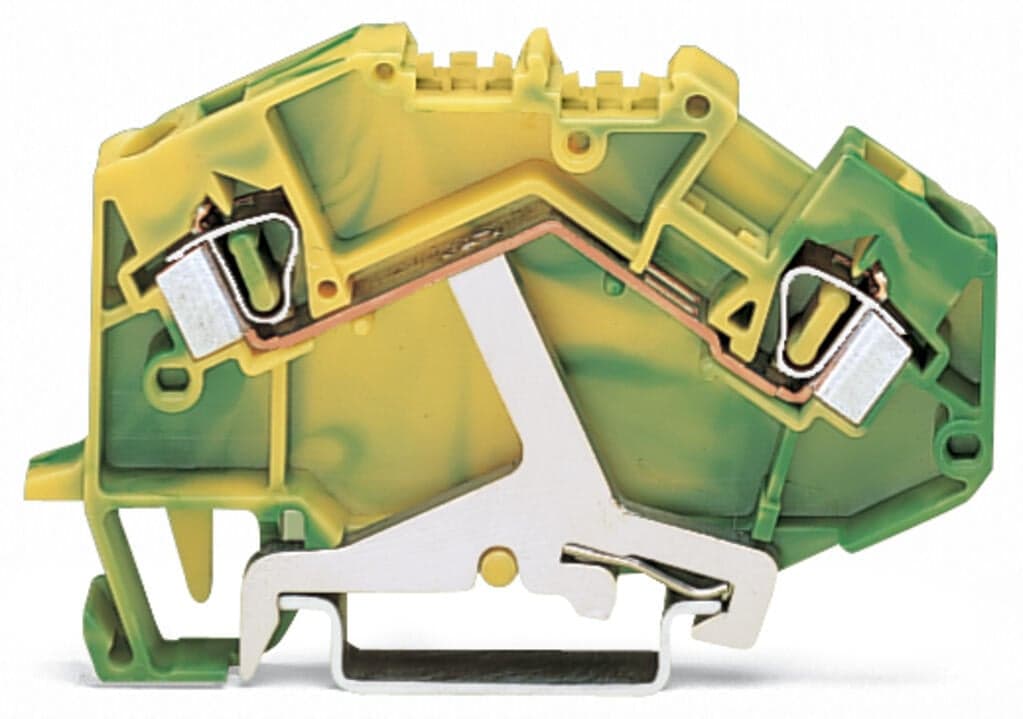

Product Model
781-607
Selling Points
- 1Angled rail mount design for easy installation.
- 22-conductor configuration suitable for various electrical connections.
- 36 mm wide, compact size for space-efficient use.
- 4Connectable with copper or aluminum conductors.
- 5Operating temperature up to 105 °C for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 77?mm?/ 3.031?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.191MJ | Weight | 16.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454084691 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 630793d3-682a-4102-a4cb-76637c410668 | SCIP notification number (Belgium) | bf5f9884-231f-4fc4-a954-798f9f7ff43a |
SCIP notification number (Bulgaria) | 9f00babc-4466-45a1-a4c8-64fe87c71afd | SCIP notification number (Czech Republic) | d0fab4f1-3cb0-4d2b-b40e-53f0532a976d |
SCIP notification number (Denmark) | 9ea8ec91-829e-468d-b004-9a01602b59be | SCIP notification number (Finland) | a286105b-3154-4e08-8191-ccbb4aadcb2d |
SCIP notification number (France) | 46e2a33e-e756-49ee-afb3-772440353eb4 | SCIP notification number (Germany) | e9b9b06e-2518-43ec-9a5a-eed4a3ea83a0 |
SCIP notification number (Hungary) | 5ce00994-9fbb-4ee3-9d44-32f60329b3fc | SCIP notification number (Italy) | da65cb00-5b26-46f8-80a8-d9b41a2bd35d |
SCIP notification number (Netherlands) | 381c3f2d-fffa-4e5b-bfe4-69884a71e693 | SCIP notification number (Poland) | ed8f1b42-045b-47a3-b68d-b6001b610fff |
SCIP notification number (Romania) | 462ee6f0-ed55-4984-b8e9-89738fe5a898 | SCIP notification number (Sweden) | 7a16b28d-1751-43e1-bd8a-6d0526db5e88 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
