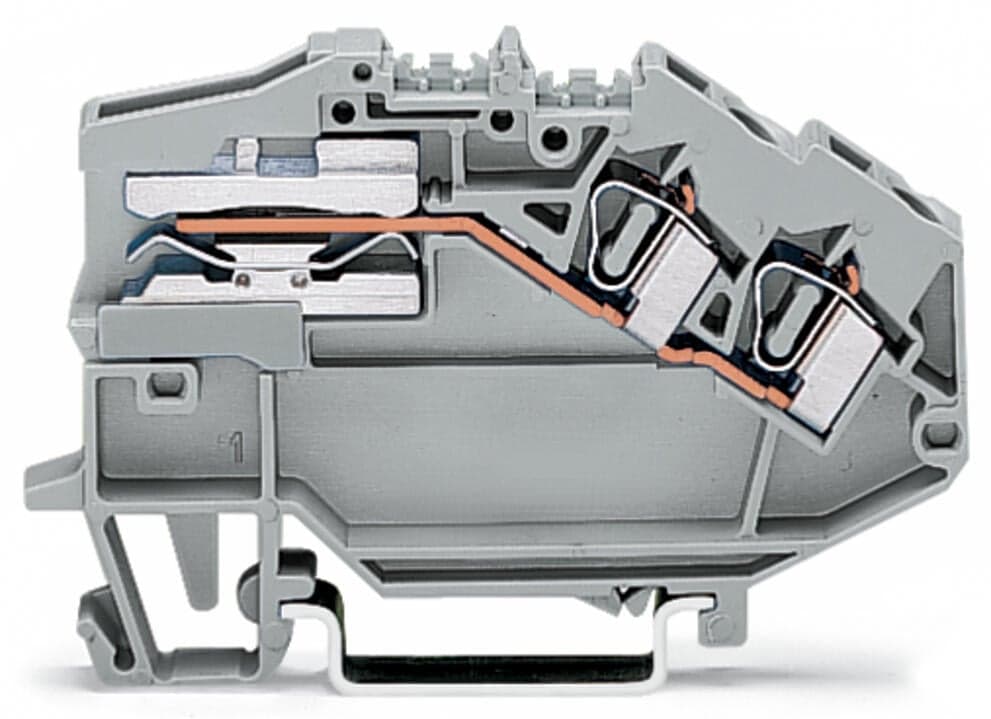

Product Model
781-653
Selling Points
- 1Prevents electrolytic corrosion between aluminum and copper conductors.
- 2Supports a rated current of 32A for efficient power distribution.
- 3Angled design for easy installation on DIN rail.
- 4Features CAGE CLAMP spring connections for secure wire insertion.
- 5Compliant with IEC/EN standards, ensuring high-quality performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 77?mm?/ 3.031?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.211MJ | Weight | 17.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-38 |
eCl@ss 9.0 | 27-14-11-38 | ETIM 9.0 | EC001257 |
ETIM 8.0 | EC001257 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918808101 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0d2c88b2-fda5-4b24-9c80-061aeae6eec0 |
SCIP notification number (Belgium) | 1e2e8f47-c1bd-49d5-bc49-97fb3da04a84 | SCIP notification number (Bulgaria) | 2207b806-aa82-4e13-8345-cbe9db948860 |
SCIP notification number (Czech Republic) | 842dcd9d-9462-4697-a772-0e91d61e8fea | SCIP notification number (Denmark) | d02d3acd-8867-4d12-9f91-c07c3b070a63 |
SCIP notification number (Finland) | 5263377f-aa14-4ec8-a859-1fc3e9c6f25f | SCIP notification number (France) | aa6cff68-b977-47ce-89f9-9f2f00e7c706 |
SCIP notification number (Germany) | 765c49b5-7ca8-4daa-9d0f-14f6f8a75016 | SCIP notification number (Hungary) | f385d0fe-f6bc-447e-ae19-52a740ba8c0d |
SCIP notification number (Italy) | 7bcee33d-217f-448d-b74d-733a771bb8ad | SCIP notification number (Netherlands) | 7a595d29-2755-44db-81ee-1c2965edd23c |
SCIP notification number (Poland) | f554e8a5-9c88-4125-afe3-001c11f9eb20 | SCIP notification number (Romania) | 37ec6941-dcf3-4a40-89e9-85d9a36d44b2 |
SCIP notification number (Sweden) | f74e958c-2231-42a2-b2b8-cc5392d5dfa3 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.024W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Front-entry wiring |
