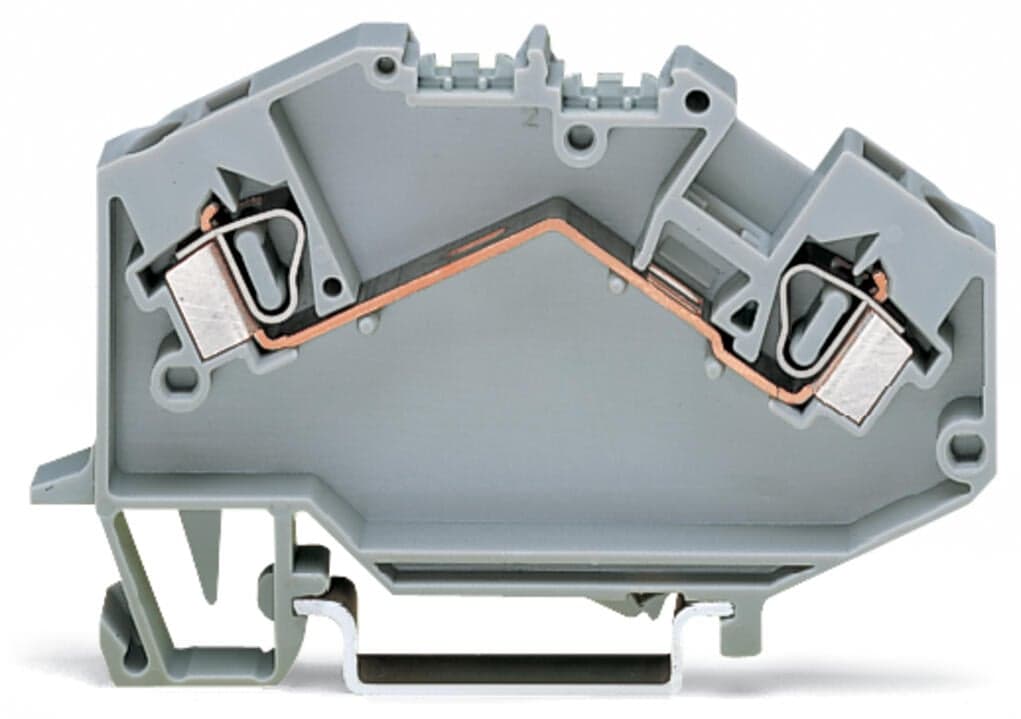

Product Model
781-992
Selling Points
- 1Designed to meet the stringent requirements of hazardous areas.
- 2Ensures secure and reliable connections with aluminum conductors.
- 3Angled design for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 4Rated current up to 30 A for efficient power transmission.
- 5Prevents electrolytic corrosion between aluminum and copper conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height | 77?mm?/ 3.031?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.183MJ | Weight | 9.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918684392 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 750V |
Rated current (Ex e II) | 30A | Power loss, per pole (potential) | 0.9W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
