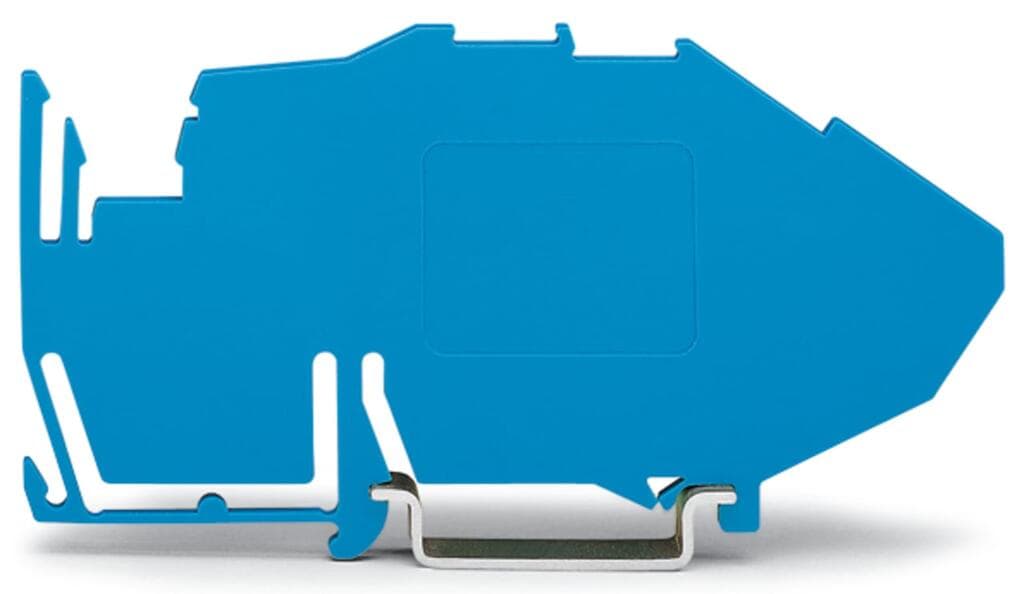

Product Model
782-321
Selling Points
- 1DIN 35 Rail Compatibility: Designed specifically for DIN 35 rail systems.
- 21.5 mm Thickness: Provides robust and reliable performance.
- 3Blue Color: Easy to identify and integrate into your setup.
- 4Not Suitable for End Stops: Ensures proper use in rail-mounted applications.
- 5Compact Dimensions: Measures 43.5 mm x 82.2 mm x 1.5 mm for efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 43.5?mm?/ 1.713?inches |
Depth | 82.2?mm?/ 3.236?inches | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.163MJ |
Weight | 5.4g | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
eCl@ss 10.0 | 27-40-06-07 | eCl@ss 9.0 | 27-40-06-07 |
ETIM 9.0 | EC001166 | ETIM 8.0 | EC001166 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332287562 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
