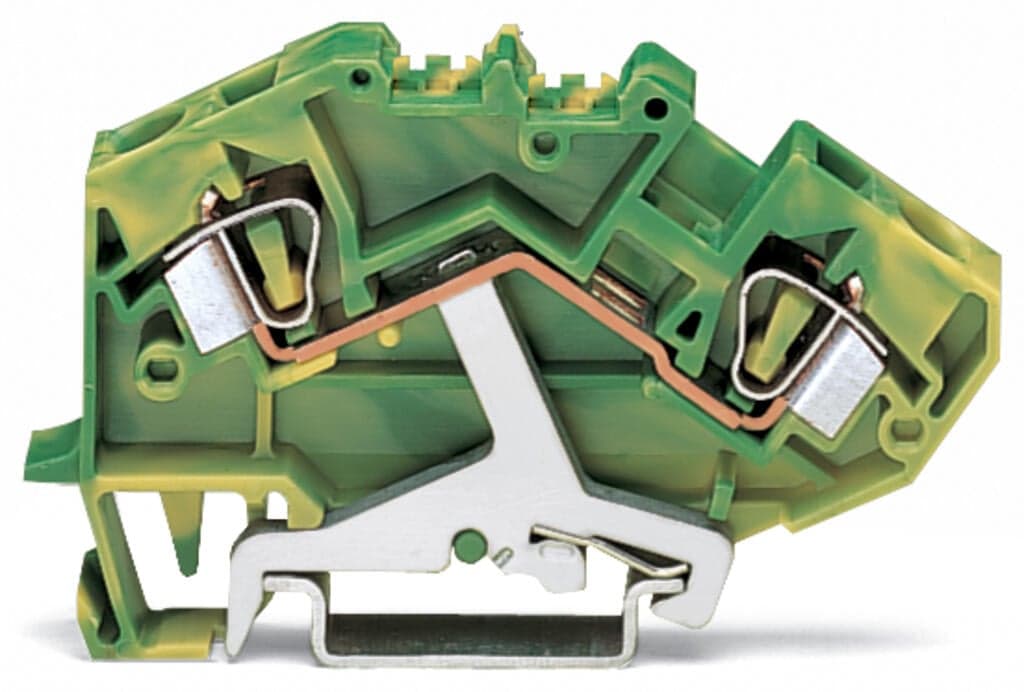

Product Model
782-607
Selling Points
- 12-Conductor earth terminal block for secure grounding.
- 2DIN rail mounting for easy installation in industrial settings.
- 3High-quality polyamide insulation for durability and safety.
- 4Angled design for improved wiring accessibility.
- 5Meets multiple international standards including DEKRA, CSA, and UL 1059.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 82.5?mm?/ 3.248?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 25.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454084721 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 74b73ee2-0416-44d8-8f35-24b968b0d2b9 |
SCIP notification number (Belgium) | 02152cd1-1258-482a-9cfe-e7a3d0733bf9 | SCIP notification number (Bulgaria) | b9980cb7-800d-424f-b982-21e9f6dcce4f |
SCIP notification number (Czech Republic) | 7887094e-0c86-4606-849a-e58542db97d8 | SCIP notification number (Denmark) | 54c15556-116f-4701-b7b9-da8ef45583f9 |
SCIP notification number (Finland) | 048bec5b-ed6a-4ab9-8a7d-a842aef4d5c9 | SCIP notification number (France) | ac83cb41-3c3a-4425-83f5-f50cecb35d6c |
SCIP notification number (Germany) | 077bdfcb-f4c9-4fb6-81e8-27db6ed92626 | SCIP notification number (Hungary) | d59df39b-9572-4611-b0e4-8677b0cb64ff |
SCIP notification number (Italy) | 86c7fd45-919d-4b22-a9e8-1e8125229fbd | SCIP notification number (Netherlands) | 46881da0-c64e-4479-a597-f7d469f97608 |
SCIP notification number (Poland) | 2f790791-56cc-4cdd-b43d-3fa2b751f7f3 | SCIP notification number (Romania) | eed90241-4620-43b0-8469-54c394d9db07 |
SCIP notification number (Sweden) | 7d58a871-9db0-4bfb-bf40-e38fbf75feb7 | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
