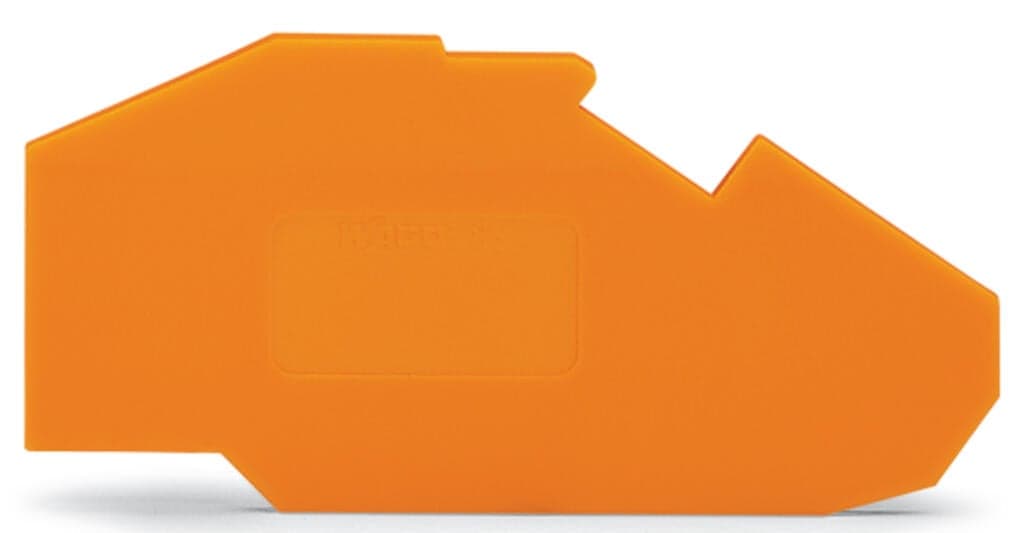

Product Model
783-317
Selling Points
- 10.132 MJ fire load ensures safety in high-temperature applications.
- 2Meets stringent safety standards with a V0 rating.
- 31.5 mm thick, made from robust material for long-lasting performance.
- 4Dimensions: 43.5 mm depth, 88.4 mm height, and 1.5 mm width.
- 5Suitable for rail and chassis terminal blocks in various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 88.4?mm?/ 3.48?inches |
Depth | 43.5?mm?/ 1.713?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.132MJ | Weight | 4.4g |
Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332287623 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
