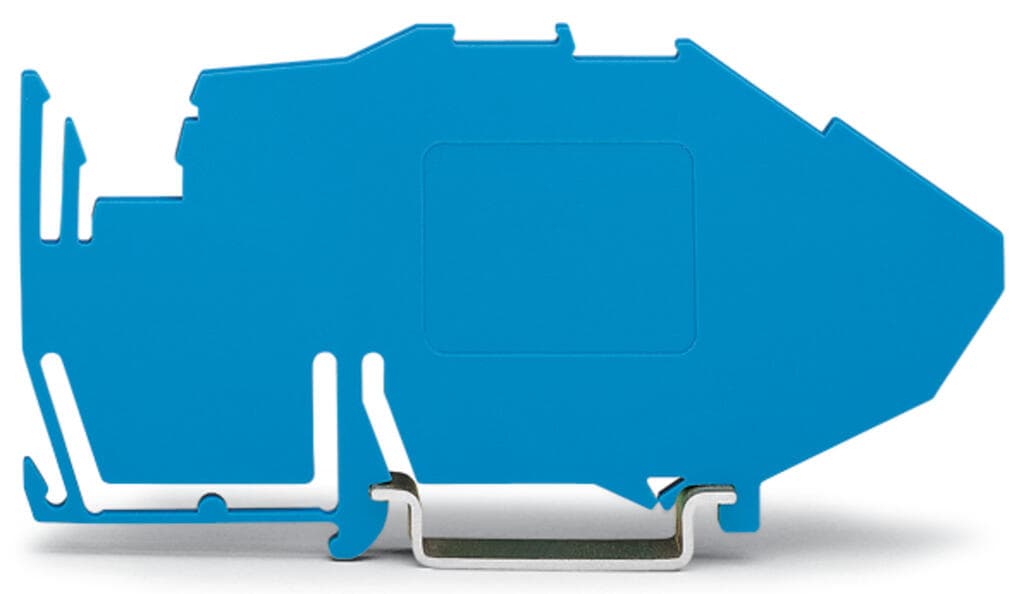

Product Model
783-321
Selling Points
- 1Designed for DIN 35 Rail: Compatible with DIN 35 rail systems.
- 21.5 mm Thickness: Robust construction with a thickness of 1.5 mm.
- 3Blue Color: Easy identification with its blue color.
- 4Mounting Accessories: Perfect for mounting various accessories.
- 5Not Suitable as End Stop: Not intended for use as an end stop in terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 43.5?mm?/ 1.713?inches |
Depth | 88.4?mm?/ 3.48?inches | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.176MJ |
Weight | 5.9g | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
eCl@ss 10.0 | 27-40-06-07 | eCl@ss 9.0 | 27-40-06-07 |
ETIM 9.0 | EC001166 | ETIM 8.0 | EC001166 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332287630 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
