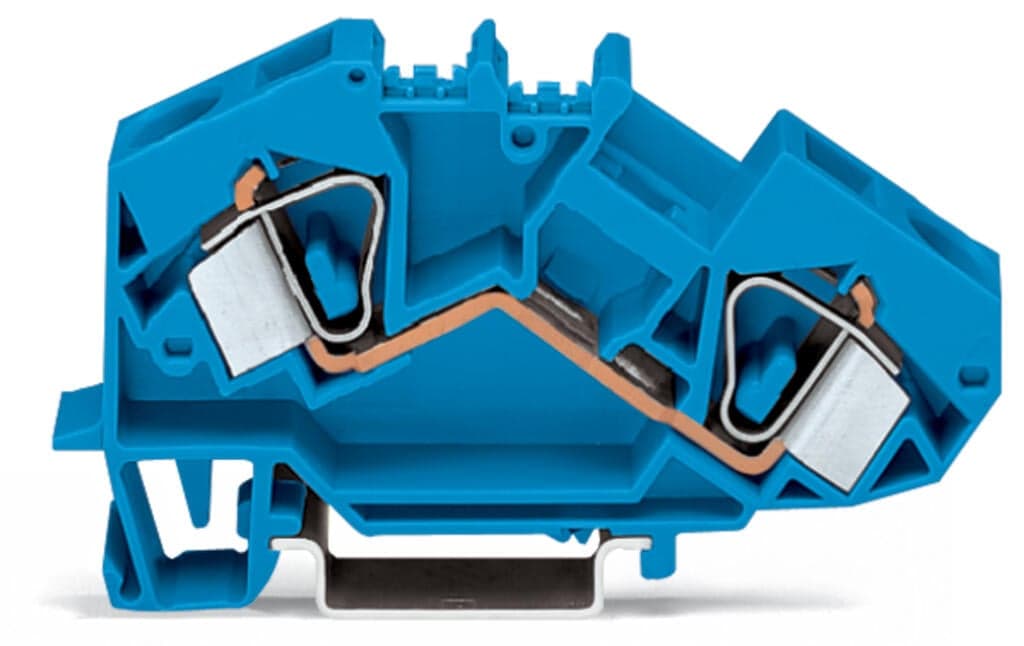

Product Model
783-604
Selling Points
- 1High-Voltage Compatibility: Rated for 1000V and 8kV impulse voltage.
- 2Durable Construction: Made with thermoplastic insulating body and polyamide 66 (PA 66) material.
- 3Efficient Clamping: Utilizes CAGE CLAMP technology for secure conductor connections.
- 4Versatile Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 mounting systems.
- 5Comprehensive Certifications: Meets IEC/EN 60664-1 standards and certified by DEKRA, CSA, and UL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 88.5?mm?/ 3.484?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.602MJ | Weight | 32.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918582407 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 76A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 2.426W | Rated current I<sub>N</sub> for specified power loss | 76A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
