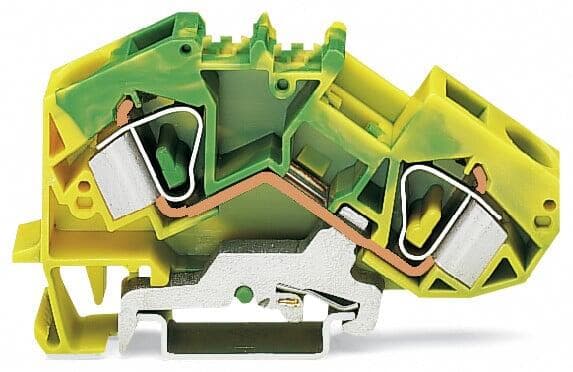

Product Model
783-607
Selling Points
- 1Handles up to 76A of nominal current.
- 2Supports 0.2-16mm² flexible and inflexible wires.
- 3Measures 43.5mm in height, 12mm in length, and width.
- 4Features a pull spring for easy connection.
- 5Made from polyamide (PA66) with UL94 V0 flammability class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 88.5?mm?/ 3.484?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.457MJ | Weight | 45.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454084738 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 2fe8be9e-9301-4156-9566-f98db3e4e55a | SCIP notification number (Belgium) | c887e174-6a42-44b7-8052-5ee9ef3ed0da |
SCIP notification number (Bulgaria) | 7be11bc0-8eed-4f86-90be-2f457341ecd0 | SCIP notification number (Czech Republic) | 1daa8dd6-f8ef-46b6-9130-04acf0396005 |
SCIP notification number (Denmark) | 8e107f6c-1b0a-4331-b4f9-fbc159bb0b71 | SCIP notification number (Finland) | 445dd23f-3e12-413c-9943-d378b29ccd47 |
SCIP notification number (France) | 1c93949b-5c48-4a90-bcef-95f0cafef6eb | SCIP notification number (Germany) | 4f7d7c3e-7b83-4043-b1a6-28ecbb5db11d |
SCIP notification number (Hungary) | 0c8852c2-4d2a-43ae-994a-d3429444ed1d | SCIP notification number (Italy) | d9333458-95d2-49e8-93e5-7c8473edc7ea |
SCIP notification number (Netherlands) | 239d07de-85ed-4575-8127-bf29eadf3dc7 | SCIP notification number (Poland) | e7e056e4-2220-4dfb-9b1f-b84807ae3463 |
SCIP notification number (Romania) | 3342b77f-ae75-446d-94dc-7c4c552baef2 | SCIP notification number (Sweden) | d126b30a-912c-4075-93cc-e494fa70ccf0 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
