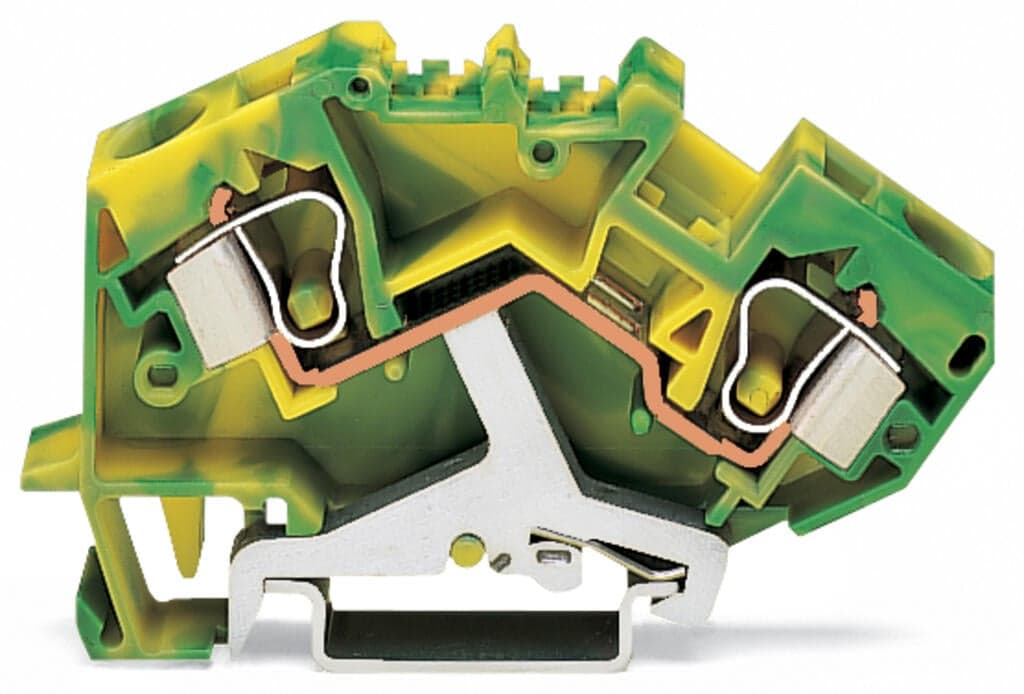

Product Model
784-607/999-950
Selling Points
- 1Angled Rail Mount Design: Perfect for DIN-rail mounting, enhancing flexibility in industrial settings.
- 2Ex e II Compliance: Suitable for hazardous environments, ensuring high safety standards.
- 3CAGE CLAMP Technology: Fast, vibration-proof, and maintenance-free connection system.
- 410 mm² Conductor Capacity: Supports a wide range of conductor sizes, from 0.2 to 10 mm².
- 5Green-Yellow Housing: Made of polyamide (PA66) for insulation and easy identification in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
Height | 82.5?mm?/ 3.248?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.342MJ | Weight | 33.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454092795 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 09ee86ec-163c-446a-8e98-d439ff404c8b |
SCIP notification number (Belgium) | 901ed4c7-597d-4cc3-99b4-47cc67202e70 | SCIP notification number (Bulgaria) | ff8f8a84-e670-4e6a-854c-6fb47d7ff77e |
SCIP notification number (Czech Republic) | 27680483-16b2-4f39-a7fb-9bb4efc30eb9 | SCIP notification number (Denmark) | 70e66415-7b3f-4e85-ae05-0acb70a29537 |
SCIP notification number (Finland) | 7115aa93-9cba-48be-a29c-caf058790a68 | SCIP notification number (France) | 9f83e9ee-0945-43b8-ae25-79d9f8720ca5 |
SCIP notification number (Germany) | 6615ed91-838a-4b8a-b620-6caa2ad47614 | SCIP notification number (Hungary) | 276d2b5c-d940-4ca5-aa5b-afd7fdf6dbc7 |
SCIP notification number (Italy) | 4fa0cc3e-bdc4-46a4-b48d-fbef1bd95f99 | SCIP notification number (Netherlands) | 40cd16ab-4a05-4dae-8bca-b69f6b62bd78 |
SCIP notification number (Poland) | 7aec6bbd-6680-49b7-a2a3-6d75e452e6ba | SCIP notification number (Romania) | 2e4c6002-99fe-4b75-9234-fd40d87a40d4 |
SCIP notification number (Sweden) | af41f75b-09b5-4a31-9a3b-43dcaef69b64 | Ratings per | IEC/EN 60947-7-2 |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
