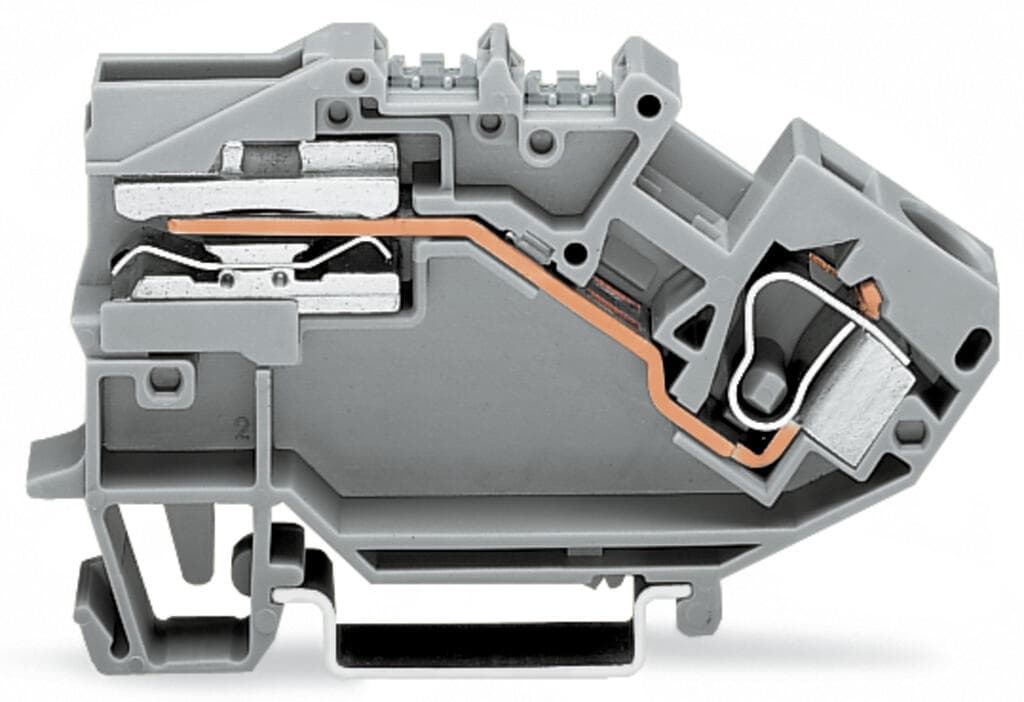

Product Model
784-623
Selling Points
- 1High-Performance Power Distribution: Designed for reliable power distribution in industrial applications.
- 2CAGE CLAMP Technology: Utilizes CAGE CLAMP spring connections for secure and efficient wire management.
- 3DIN Rail Mounting: Easy installation on DIN-35 rail for flexible and space-saving solutions.
- 4Compliant with Standards: Meets CSA and UL standards, ensuring compliance with safety regulations.
- 5Versatile Conductor Compatibility: Supports wire sizes from 0.2mm² to 10mm² or #24AWG to #8AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
Height | 82.5?mm?/ 3.248?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.338MJ | Weight | 32.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-38 |
eCl@ss 9.0 | 27-14-11-38 | ETIM 9.0 | EC001257 |
ETIM 8.0 | EC001257 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454016999 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | d71822b9-5c54-476b-8917-59250c583f03 |
SCIP notification number (Belgium) | d9fa5d0a-5c1b-4935-b59d-14e14bfe8491 | SCIP notification number (Bulgaria) | d1a20dd7-260f-430f-a292-9c04a9a296d1 |
SCIP notification number (Czech Republic) | 8260914b-798a-468d-bb28-1e5f09c959a8 | SCIP notification number (Denmark) | af3c9e91-fc1c-4e14-a5b3-9018fc065f65 |
SCIP notification number (Finland) | 253e8f5d-ef8d-450f-b773-84e99c32c612 | SCIP notification number (France) | 93c47d15-8bee-497b-a39c-1c2fbd34dab9 |
SCIP notification number (Germany) | d851bd01-cc3b-4424-9f59-8a998f61e2c0 | SCIP notification number (Hungary) | 05f91e27-e783-4535-8ad0-cd344eac56e2 |
SCIP notification number (Italy) | 37a67fed-cf8b-4fba-8aab-43ff205bc81e | SCIP notification number (Netherlands) | e4461236-d74b-4c50-9014-ec7226b8c404 |
SCIP notification number (Poland) | e8082d6e-cc20-4202-b4a9-4a487cdf73a6 | SCIP notification number (Romania) | 1c5a9a5e-854f-453f-b0dc-3c384905227c |
SCIP notification number (Sweden) | 1bbb101e-a4c1-4afc-ab1f-4d6fbed74437 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 57A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.819W |
Rated current I<sub>N</sub> for specified power loss | 57A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring | Solid conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor 2 | 0.2 … 16?mm2?/ 24 … 6?AWG |
Specifications may be subject to change without notice
