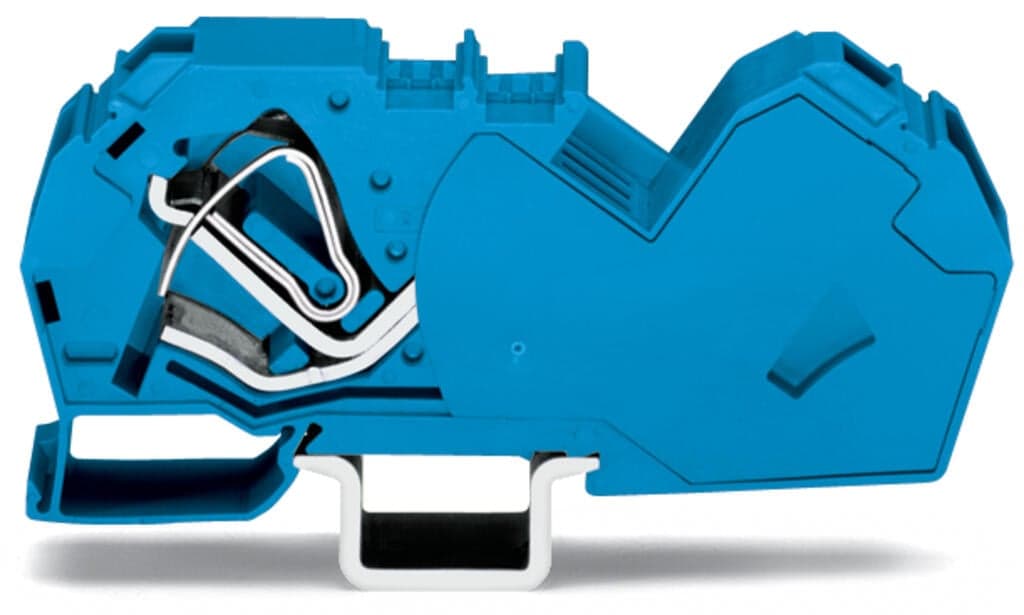

Product Model
785-604
Selling Points
- 1Supports up to 125A for reliable connections in demanding applications.
- 2Constructed with polyamide 66 (PA 66) insulating material for enhanced durability.
- 3Front-entry wiring and side/center marking slots simplify cable management.
- 4Designed for DIN-35 rail mounting, ensuring easy installation in various settings.
- 5Meets overvoltage category III and pollution degree 3 standards for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 114?mm?/ 4.488?inches | Depth from upper-edge of DIN-rail | 44.5?mm?/ 1.752?inches |
Design | angled | Mounting type | DIN-35 rail |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.103MJ |
Weight | 86.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454400583 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 4.062W | Rated current I<sub>N</sub> for specified power loss | 125A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG | Stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Fine-stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG | Strip length | 23?mm?/ 0.91?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
