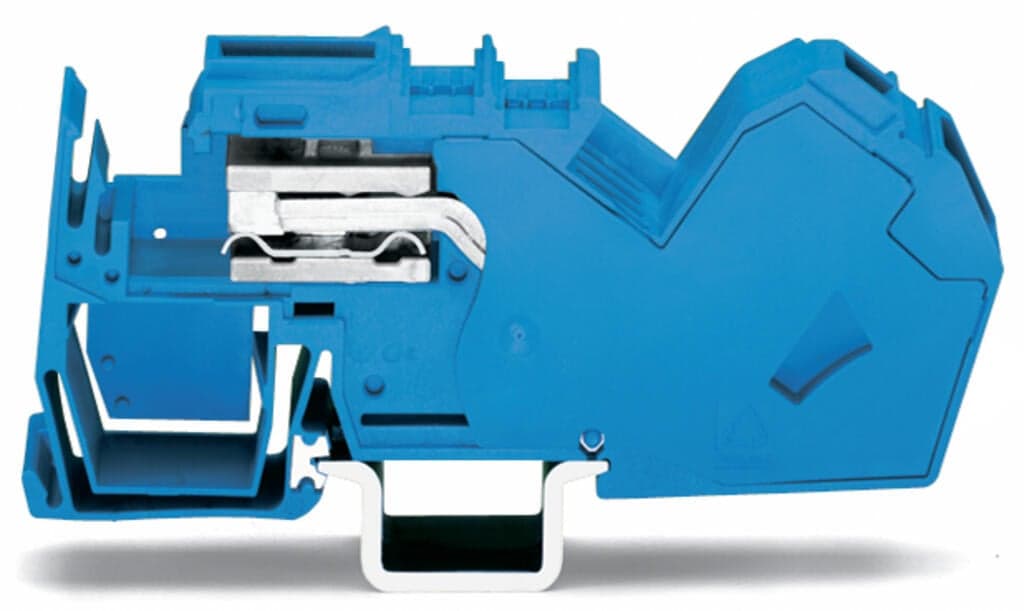

Product Model
785-613
Selling Points
- 1Compact Design: Single-deck unit with integrated end plate for closed construction.
- 2Versatile Connectivity: Suitable for 6mm² to 35mm² or #8AWG to #2AWG wires.
- 3High Current Rating: Rated for 125A continuous operating current.
- 4Durable Connections: Utilizes CAGE CLAMP spring connections for secure wire management.
- 5Temperature Resistance: Operates within -60°C to +105°C temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 116.5?mm?/ 4.587?inches | Depth from upper-edge of DIN-rail | 44.5?mm?/ 1.752?inches |
Design | angled | Mounting type | DIN-35 rail |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.085MJ |
Weight | 93.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-38 | eCl@ss 9.0 | 27-14-11-38 |
ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454601874 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 125A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 4.062W |
Rated current I<sub>N</sub> for specified power loss | 125A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG | Fine-stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Strip length | 23?mm?/ 0.91?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
