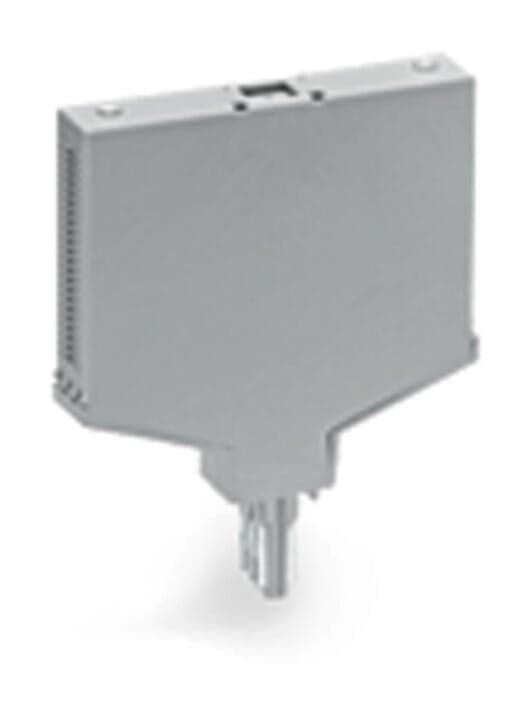

Product Model
786-101
Selling Points
- 1Type 14 Connector: Designed for plug-in mounting with a 6-pole configuration.
- 215 mm Wide: Compact size suitable for various applications.
- 3Gray Color: Durable and easy-to-spot in any setup.
- 4Rated Current 6A: Handles up to 6 amps of electrical current.
- 5RoHS Compliant: Meets environmental safety standards for hazardous materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated continuous current | 6A | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 3 |
Number of poles | 6 | Width | 15?mm?/ 0.591?inches |
Height | 84 mm / 3.307 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.243 inches |
Housing design | Plug for carrier terminal blocks | Mounting type | Pluggable module for receptacle terminal blocks |
Color | gray | Fire load | 0.778MJ |
Weight | 30.8g | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-18-27-02 | eCl@ss 9.0 | 27-18-27-02 |
ETIM 9.0 | EC001031 | ETIM 8.0 | EC001031 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821082293 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
