Product Model

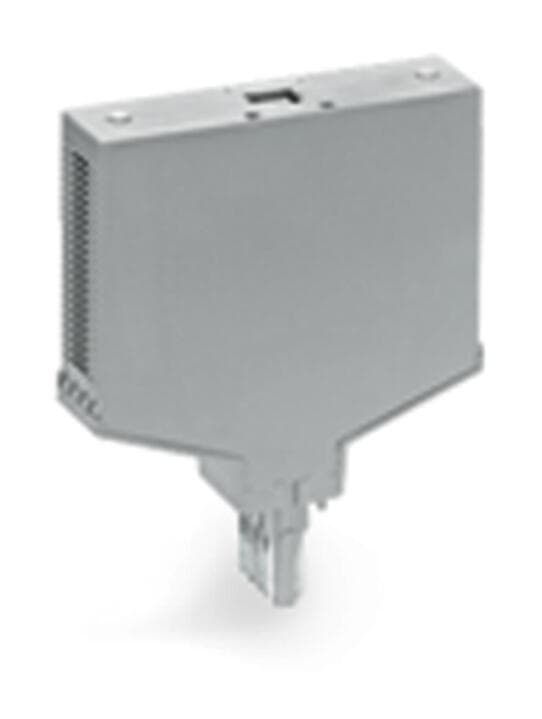

786-102
Selling Points
- 18-pole (8P) connector with a rated current of 6A.
- 2Gray color for easy identification.
- 3Designed for plug-in mounting.
- 4Compatible with WAGO's 786 series.
- 5Ideal for use in terminal blocks and I/O systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated continuous current | 6A | Rated voltage | 250V |
Rated surge voltage | 4kV | Pollution degree | 3 |
Number of poles | 8 | Width | 20?mm?/ 0.787?inches |
Height | 84 mm / 3.307 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.243 inches |
Housing design | Plug for carrier terminal blocks | Mounting type | Pluggable module for receptacle terminal blocks |
Color | gray | Fire load | 0.878MJ |
Weight | 36.1g | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-18-27-02 | eCl@ss 9.0 | 27-18-27-02 |
ETIM 9.0 | EC001031 | ETIM 8.0 | EC001031 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821082309 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
